Discontinued

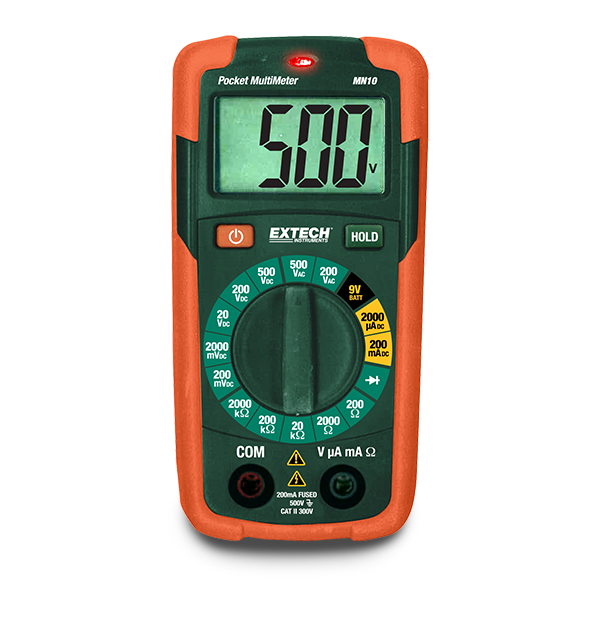

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 500V |
| AC電圧の基本精度 | ±1.2% |
| AC電圧の最大解像度 | 0.1V |
| DC電圧 | 500V |
| DC電圧の基本精度 | ±0.5% |
| DC電圧の最大解像度 | 0.1mV |
| DC電流 | 200mA |
| DC電流の基本精度 | ±1.2% |
| DC電流の最大解像度 | 1µA |
| ダイオード試験 | Yes |
| バッテリー試験 | 9V |
| 抵抗 | 2000kΩ |
| 抵抗の最大解像度 | 0.1Ω |
| 非接触電圧（NCV）検出器 | 100 to 600VAC |
| 追加の詳細 | |
|---|---|
| 保証 | 1 year |
| 出力 | 1 × A23 (12V) battery |
| 安全性カテゴリー | CATII - 300V |
| 寸法 | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| 認証 | CE |
| 重量 | 3.6oz (102g) |
