Discontinued

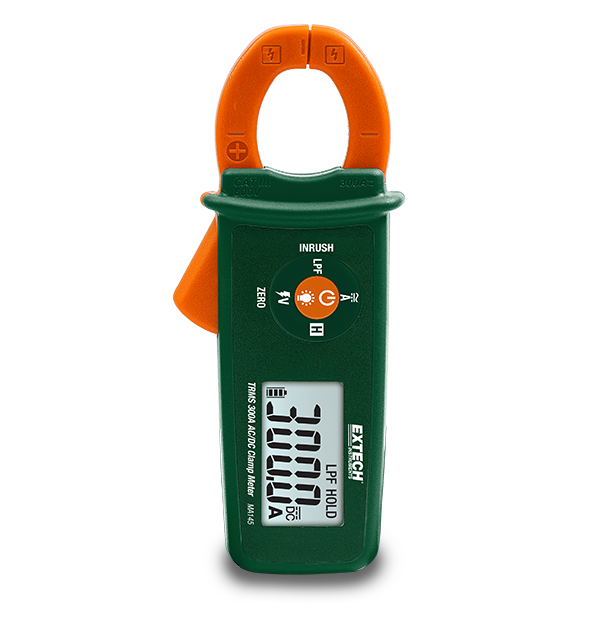

Extech MA145
True RMS 300A AC/DC Clamp Meter
The MA145 is a Compact AC/DC Clamp Meter with NCV detector. This clamp meter takes True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA145 can measure up to 300 A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600 V safety rating.
仕様
| 一般仕様 | |
|---|---|
| AC電流 | 60A, 300A |
| AC電流の基本精度 | ±1.5% |
| AC電流の最大解像度 | 0.01A |
| DC電流 | 60A, 300A |
| DC電流の基本精度 | ±1.5% |
| DC電流の最大解像度 | 0.01A |
| ジョーサイズ | 0.8" (22mm), conductors up to 300MCM |
| 真の実効値 | Yes |
| 非接触電圧（NCV）検出器 | 80 to 600VAC |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 2 × LR44 (1.5V) batteries |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
| 認証 | CE, UL |
| 重量 | 4.9oz (140g) |
