Discontinued

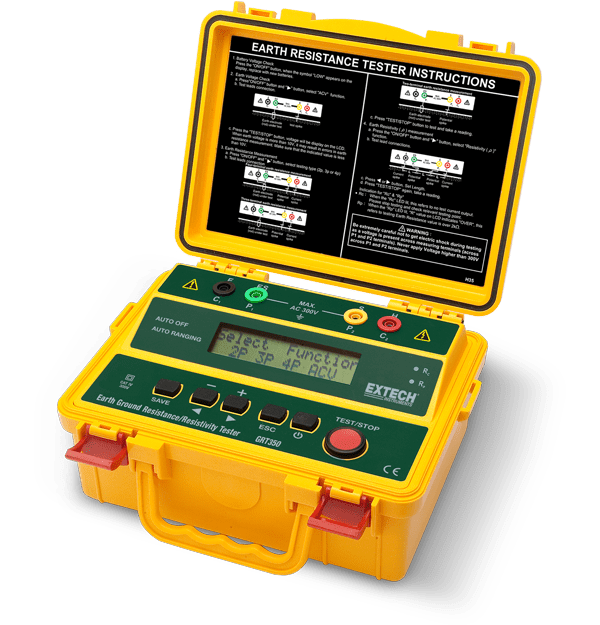

Extech GRT350

4-Wire Earth Ground Resistance/Resistivity Tester

The Extech GRT350 is a 4-Wire Earth Ground Resistance and Resistivity Tester which measures earth ground resistance from 2 Ohm to 2000 Ohm and resistivity from 0.06 ohm-m to 628 ohm-m. The GRT350 supports 4-wire, 3-wire, and 2-wire testing. It has a large dual line LCD, automatic spike check, test hold function, auto ranging, data hold, and auto power off function. This tester can also store and recall up to 200 test results and has over range and low battery indications. Product is complete with test leads with alligator clips, 4 auxiliary earth bars, hard carrying case, user's manual, and eight 1.5 V AA batteries. CE certified with a CAT IV 300 V safety rating.

仕様

一般仕様
アース電圧 0 to 300VAC
アース電圧の基本精度 ±(2% of reading + 3 digits)
接地抵抗 20Ω/200Ω/2000Ω
接地抵抗の基本精度 ±(2% of reading + 3 digits)
接地抵抗の最大解像度 0.01Ω/0.1Ω/1Ω
接地抵抗率 0.06 to 6.28 kΩm, 0.62 to 62.8 kΩm, 6.28 to 628 kΩm
試験周波数 820Hz
試験電流 approx. 2mA
追加の詳細
保証 2 years
出力 8 × AA (1.5V) batteries
安全性カテゴリー CATIV - 300V
寸法 9.8 × 7.8 × 4.3" (250 × 190 × 110mm)
認証 CE
重量 3.15lbs (1430g)
