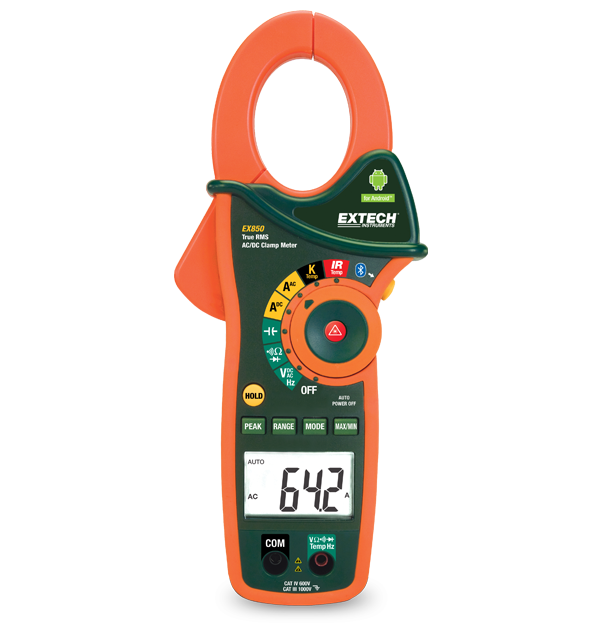

Extech EX850
True RMS 1000A AC/DC Clamp Meter with Bluetooth®
The Extech EX850 is a 1000 A True RMS AC/DC Clamp Meter with Bluetooth®, capable of transmitting key electrical readings to android mobile devices. The EX850 measures AC/DC current and voltage, resistance, capacitance, frequency, IR temperature, and continuity. This clamp meter has a 4.3 cm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM. The EX850 also has a 4000 count backlit LCD display, auto ranging and manual ranging button, as well as data hold, min/max, and auto power off functions. This product has a CAT IV 600 V safety rating and comes with CAT IV test leads, 9 V battery, general purpose Type K probe, user's manual, and pouch case.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1mV to 1000V |
| AC電圧の基本精度 | ±1.5% |
| AC電流 | 0.1 to 1000A |
| AC電流の基本精度 | ±2.8% |
| DC電圧 | 0.1mV to 1000V |
| DC電圧の基本精度 | ±2.8% |
| DC電流 | 0.1 to 1000A |
| DC電流の基本精度 | ±2.8% |
| ジョーサイズ | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| ダイオード試験 | Yes |
| 周波数 | 0.001kHz to 4kHz |
| 周波数の基本精度 | ±1.5% |
| 導通 | Yes |
| 抵抗 | 0.1 to 40MΩ |
| 温度（IR）の基本精度 | -58 to 518°F (-50 to 270°C) |
| 温度（IR）の最大分解能 | ±2.0% of reading or ±4°F/±2°C |
| 温度（タイプK）の最大分解能 | -4 to 1400°F (-20 to 760°C) |
| 温度（タイプN） | ±(3% of reading + 9°F/5°C) |
| 真の実効値 | Yes |
| 突入電流 | Yes |
| 電気容量 | 0.001nF to 40,000µF |
| 追加の詳細 | |
|---|---|
| 保証 | 2 Years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 1000V, CATIV - 600V |
| 寸法 | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| 認証 | CE |
| 重量 | 13.6oz (386g) |
