Discontinued

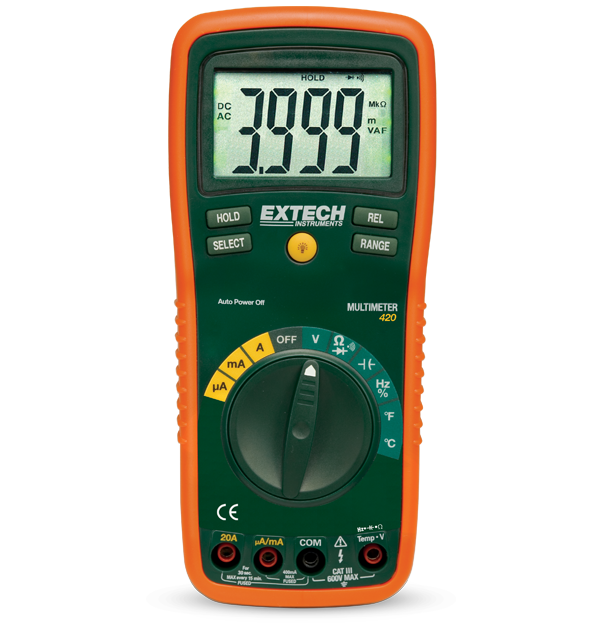

Extech EX420

11 Function Professional MultiMeter

The Extech EX420 is a compact, 11 Function Professional Multimeter. The EX420 measures AC/DC voltage and current, resistance, diode, continuity, and frequency, all with ± 0.3 percent basic accuracy. It can also capture Type K temperature readings. These numerous functions enable professionals to carry one meter into the field instead of several. Featuring a large, backlit LCD screen (4,000 count) with easy to read digits, the EX420 provides high resolution over wide ranges, low current measuring down to 0.1 µA, and input fuse protection with misconnection warnings. Complete with CAT III test leads, multi position tilt stand, velcro hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, 9 V battery, and user manual.

仕様

一般仕様
AC電圧 0.1mV to 750V
AC電流 0.1µA to 20A
DC電圧 0.1mV to 1000V
DC電圧の基本精度 ±0.3%
DC電流 0.1µA to 20A
ダイオード試験 Yes
周波数 0.001Hz to 10MHz
導通 Yes
抵抗 0.1Ω to 40MΩ
温度(タイプK)の最大分解能 -4 to 1382°F (-20 to 750°C)
真の実効値 Yes
負荷サイクル 0.1% to 99.9%
電気容量 0.01nF to 100ΩF
追加の詳細
保証 2 years
出力 1 × 9V battery
安全性カテゴリー CATIII - 600V, CATIV - 1000V
寸法 7.4 × 3.2 × 2" (187 × 81 × 50mm)
認証 UL
重量 0.75lbs (342g)

Export Restrictions
