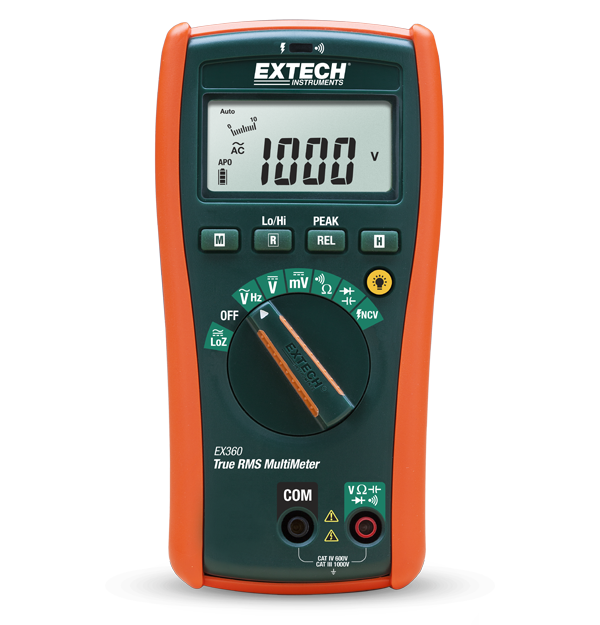

Extech EX360

8 Function True RMS Multimeter

The Extech EX360 is a compact electrical true RMS multimeter with a built in non contact voltage detector. It features highly accurate true RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5% basic accuracy, a 1000 V AC/DC volt range, resistance up to 40 MΩ, continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero, and offset adjustment. Additionally, the EX360 excels in frequency and capacitance measurement. Complete with test leads, 9 V battery, holster with tilt stand and built-in magnet.

仕様

一般仕様
AC電圧 0.1mV to 1000V
DC電圧 0.1mV to 1000V
DC電圧の基本精度 0.5%
ダイオード試験 Yes
周波数 0.01Hz to 100kHz
導通 Yes
抵抗 0.1Ω to 40MΩ
真の実効値 Yes
電気容量 1nF to 10mF
非接触電圧(NCV)検出器 Yes
追加の詳細
保証 3 years
出力 1 × 9V battery
安全性カテゴリー CATIV - 600V
寸法 6.5 × 3.2 × 1.7" (164 × 82 × 44mm)
認証 CE, UL, NIST
重量 5.9oz (450g)
