Discontinued

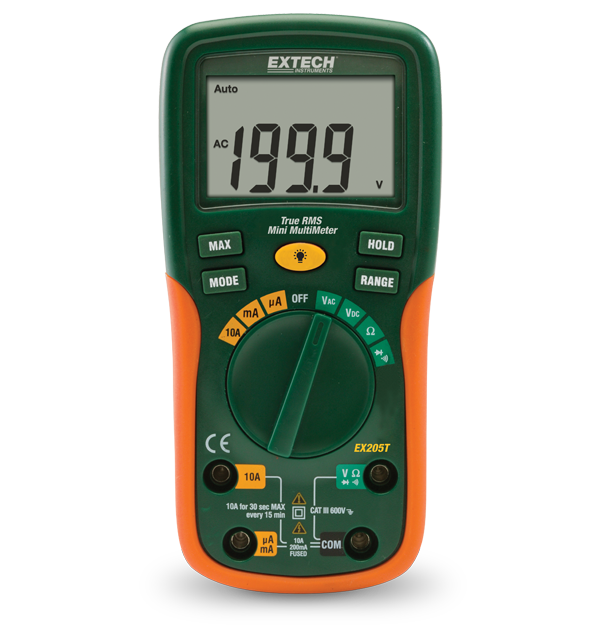

Extech EX205T

TrueRMS Digital Multimeter

The Extech EX205T is a True RMS Digital Multimeter which provides true AC readings when measuring distorted or non-sinusoidal waveforms plus noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000 count, backlit dual LCD with easy to read digits, this multimeter measures AC/DC voltage, resistance, diode test, and continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off, and data hold functions. Product includes test leads and 9 V battery.

仕様

一般仕様
AC電圧 600V
AC電圧の最大解像度 0.1mV
AC電流 10A
AC電流の最大解像度 0.1µA
DC電圧 600V
DC電圧の基本精度 ±0.5%
DC電圧の最大解像度 0.1mV
DC電流 10A
DC電流の最大解像度 0.1µA
ダイオード試験 Yes
導通 Yes
抵抗 20MΩ
抵抗の最大解像度 0.1Ω
真の実効値 Yes
追加の詳細
保証 2 years
出力 1 × 9V battery
安全性カテゴリー CATIII - 600V
寸法 5.8 × 2.9 × 1.6" (147 × 76 × 42mm)
認証 CE
重量 9.17oz (260g)
