Discontinued

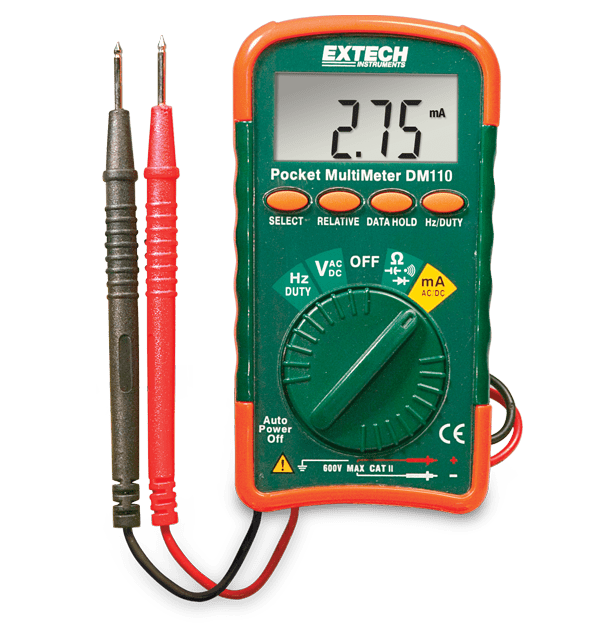

Extech DM110

Mini Pocket MultiMeter

Extech's DM110 offers full function versatility and the most pocket-friendly multimeter size available. The compact, autoranging DM110 digital Mini Multimeter is equipped with capabilities that are perfect for a electrical hobbyist, electronics tinkerer, or DIYer. Use this meter to perform more in depth testing to troubleshoot anything connected to an outlet, such as any electronic devices found around the home and garage. The DM110 is great for automotive and marine electrical applications, A/V projects, Arduino projects, and secondary home wiring systems like security alarms and thermostat circuits. It includes a protective rubber holster with storage clips to retain the integrated test leads, soft carrying case, CR2032 button battery, user manual, and one year limited warranty.

仕様

一般仕様
AC電圧 500V
AC電圧の基本精度 ±2.3%
AC電圧の最大解像度 1mV
AC電流 400mA
AC電流の基本精度 ±2.5%
AC電流の最大解像度 0.01mA
DC電圧 500V
DC電圧の基本精度 ±1.3%
DC電圧の最大解像度 1mV
DC電流 400mA
DC電流の基本精度 ±2.0%
DC電流の最大解像度 0.01mA
ダイオード試験 Yes
デューティサイクルの基本精度 ±1.2%
デューティサイクルの最大分解能 0.10%
周波数 5Hz to 10MHz
周波数の基本精度 ±2%
周波数の最大分解能 0.001Hz
導通 Yes
抵抗 400 to 40MΩ
抵抗の最大解像度 0.1Ω
負荷サイクル 0.1% to 99.9%
電気容量 100µF
静電容量最大解像度 0.001nF
追加の詳細
保証 2 years
出力 1 × CR2032 (3V) battery
安全性カテゴリー CATII - 600V
寸法 4.25 × 2.2 × 0.5”(108 × 56 × 11.5mm)
認証 CE, UL
重量 1.7oz (50g)
