Discontinued

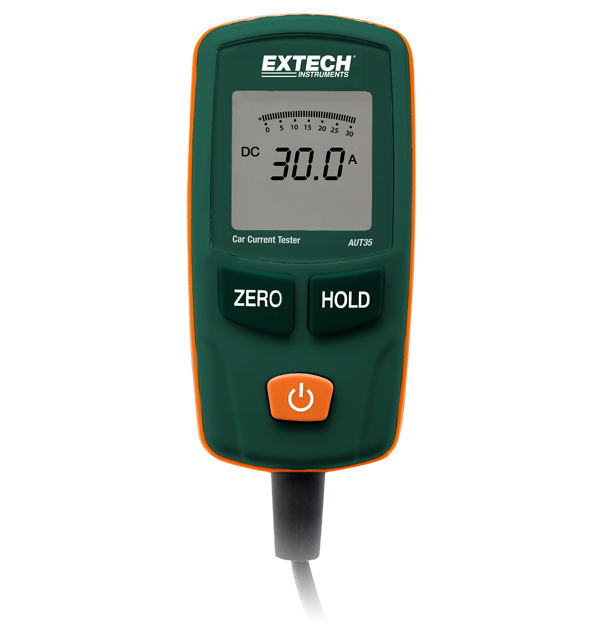

Extech AUT35
Universal 30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT35 Current Tester. Mini-blade and ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD with a bargraph. Includes alligator clips.
仕様
| 一般仕様 | |
|---|---|
| DC電圧 | 48V DC |
| DC電流 | 0 to 30A DC |
| DC電流の基本精度 | 100mA |
| DC電流の最大解像度 | ±(2.0% of reading + 2 digits) |
| 検知距離 | <0.2" |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 寸法 | 86 × 37 × 28mm (3.4 × 1.5 × 1.1") |
| 認証 | CE |
| 重量 | 68g (0.15 lbs.) |
Export Restrictions
