Discontinued

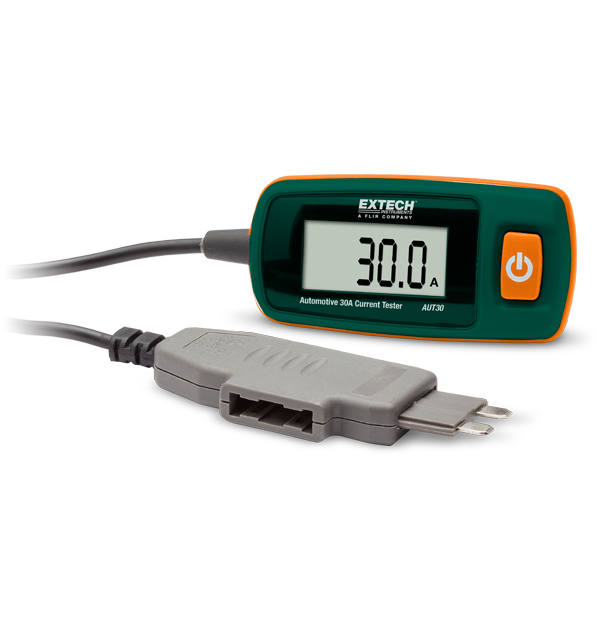

Extech AUT30
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30 Current Tester. ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 75 cm (29.5 in) connector cable.
仕様
| 一般仕様 | |
|---|---|
| DC電圧 | 48V DC |
| DC電流 | 0 to 30A DC |
| DC電流の基本精度 | 10mA |
| DC電流の最大解像度 | ±(2.0% of reading + 2 digits) |
| ケーブルの長さ | 71cm (2.3 ft.) |
| 検知距離 | <0.2" |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × A23G (12V) battery |
| 寸法 | 159 × 25mm (6.25 × 1") |
| 認証 | CE |
| 重量 | 42g (1.5 oz) |
