Discontinued

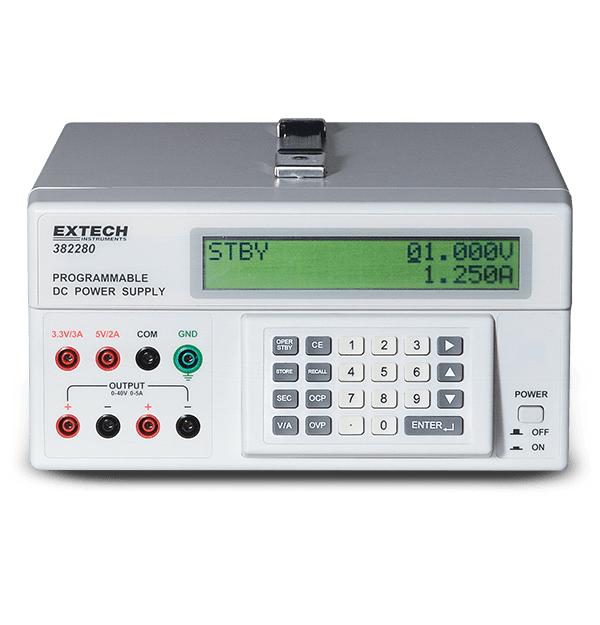

Extech 382280
Precision with Programmable 200 Watt Output DC Power Supply
The Extech 382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40 V/5 A output, plus two fixed outputs (5 V/2 A and 3.3 V/3 A) and memory for 200 setups. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable constant current/constant voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.
仕様
| 一般仕様 | |
|---|---|
| リップルとノイズ | Voltage (mVrms): 3mV Current (mArms): 3mA |
| 出力電圧 | 0 to 40V |
| 出力電圧の基本精度 | 0.05% ± 9mV |
| 出力電圧の最大解像度 | 1mV |
| 出力電流 | 0 to 5A |
| 出力電流の基本精度 | 0.2% ± 9mA |
| 出力電流の最大分解能 | 1mA |
| 固定出力 | 5V/2A, 3.3V/3A |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 110 or 220VAC, 50/60Hz |
| 寸法 | 12.2 × 9.9 × 5.3" (310 × 250 × 135mm) |
| 認証 | CE |
| 重量 | 8.4lbs (3.8kg) |
Export Restrictions
