Discontinued

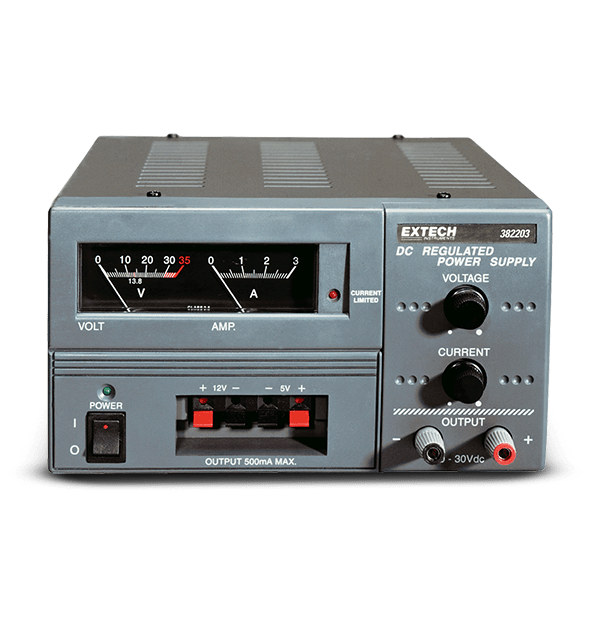

Extech 382203
Analog Triple Output DC Power Supply
The Extech 382203 is an Analog Triple Output DC Power Supply with overload and short circuit protection. Featuring constant voltage and current supply, the 382203 has a current limiting, front panel, LED indicator and binding post terminals for variable supply. Complete with power cord.
仕様
| 一般仕様 | |
|---|---|
| リップルとノイズ | <5mV |
| 出力電圧 | 0 to 30V DC |
| 出力電流 | 0 to 3A DC |
| 固定出力 | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| 線間電圧調整 | <0.05%+10mV |
| 負荷電圧制御 | <0.05%+10mV |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 110/220VAC 50/60Hz |
| 寸法 | 6 × 5.6 × 9.5" (152 ×142 × 242) |
| 認証 | CE |
| 重量 | 11lbs. (5kg) |
資料とサポート
User Manual
Manuale utente Extech 382203 382213
