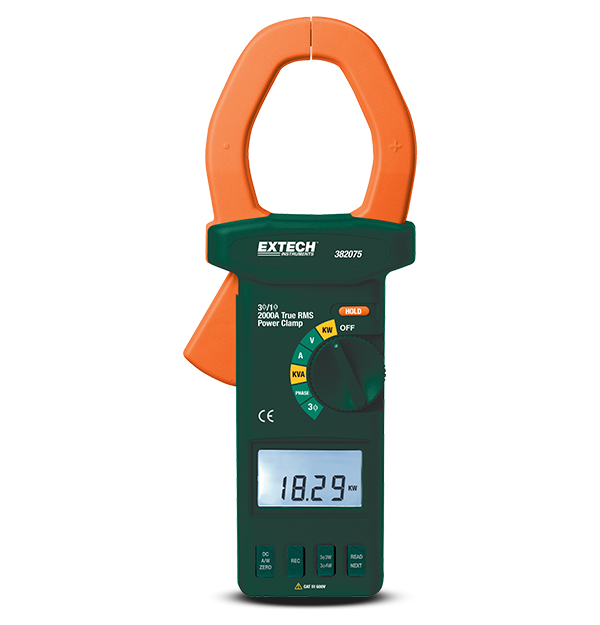

Extech 382075
2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer
The Extech 382075 is a 3-Phase True RMS Clamp-on Power Analyzer which can be used on 3 and 4 wire balanced or unbalanced loads. It can measure reactive and apparent power up to 1200 kW. Additional measurements include watts, voltage, current, frequency, power factor, and phase angle. It can display lead, lag current, and voltage phase shift in degrees, plus it can also store and recall the previous 4 readings. Additional features include DC current auto zero, data hold, min/max, and relative mode. Comes complete with test leads, carrying case, and 9 V battery.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600VAC |
| AC電圧の基本精度 | ±2% of reading + 5 digits |
| AC電圧の最大解像度 | 0.1V |
| AC電流 | 2000A |
| AC電流の基本精度 | ±2% of reading + 5 digits |
| AC電流の最大解像度 | 0.1A |
| DC電圧 | 800VDC |
| DC電圧の基本精度 | ±2% of reading + 5 digits |
| DC電圧の最大解像度 | 0.1V |
| DC電流 | 2000A |
| DC電流の基本精度 | ±2% of reading + 5 digits |
| DC電流の最大解像度 | 0.1A |
| 位相 | -90° to +90° |
| 位相の基本精度 | ±0.5° |
| 位相の最大分解能 | 0.1° |
| 力率 | 0.2 to 1 |
| 力率の基本精度 | PF=W/(V×A) |
| 力率の最大分解能 | 0.01 |
| 周波数 | 40 to 400Hz |
| 周波数の基本精度 | ±1% of reading + 2 digits |
| 周波数の最大分解能 | 0.1Hz |
| 無効電力 | 1200KVAR |
| 無効電力の基本精度 | ±2% of reading + 5 digits (PF<0.91) |
| 無効電力の最大分解能 | 0.01/0.1KVAR |
| 皮相電力 | 1200KVA |
| 皮相電力の基本精度 | ±2% of reading + 5 digits |
| 皮相電力の最大解像度 | 0.01/0.1KVA |
| 真のパワー | 1200kW |
| 真のパワーの基本精度 | ±2% of reading + 5 digits |
| 真のパワーの最大分解能 | 0.01/0.1kW |
| 真の実効値 | Yes |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 安全性カテゴリー | CAT III-600V |
| 寸法 | 10.7 × 4.8 × 1.8" (271 × 122 × 46mm) |
| 認証 | CE, UL |
| 重量 | 24.7oz (700g) |
