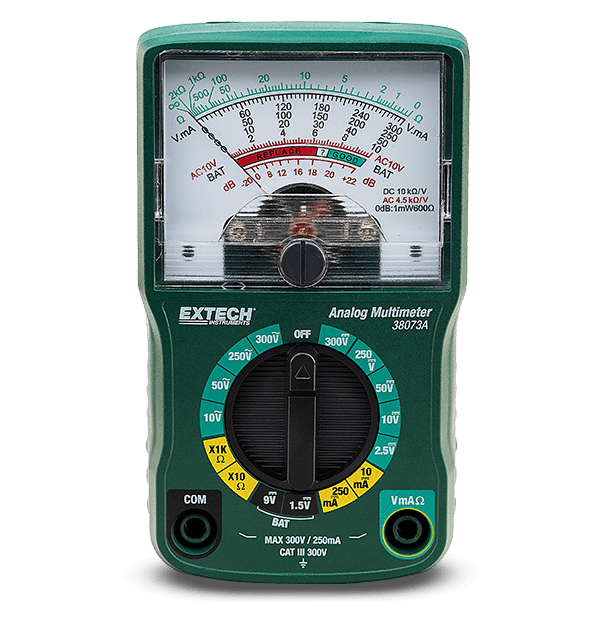

Extech 38073A

Mini Analog MultiMeter

Extech’s 38073A Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. It offers 6 functions and includes test leads plus an easy to read, color coded analog display. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with test leads and a 1.5 V AA battery.

仕様

一般仕様
AC電圧 10V, 50V, 250V, 300V
AC電圧の基本精度 ±5% full scale
DC電圧 2.5V, 10V, 50V, 250V, 300V
DC電圧の基本精度 ±4% full scale
DC電流 10mA, 250mA
DC電流の基本精度 ±4% full scale
デシベル -20 to 22dB (0dB: 1mW, 600Ω)
バッテリー試験 9V and 1.5V
抵抗 10Ω, 1kΩ
追加の詳細
保証 2 years
出力 1 × 9V battery
安全性カテゴリー CAT III-300V
寸法 4.6 × 2.7 × 1.3" (116 × 68 × 34mm)
認証 CE,ETL
重量 4.2oz (120g)
