Discontinued

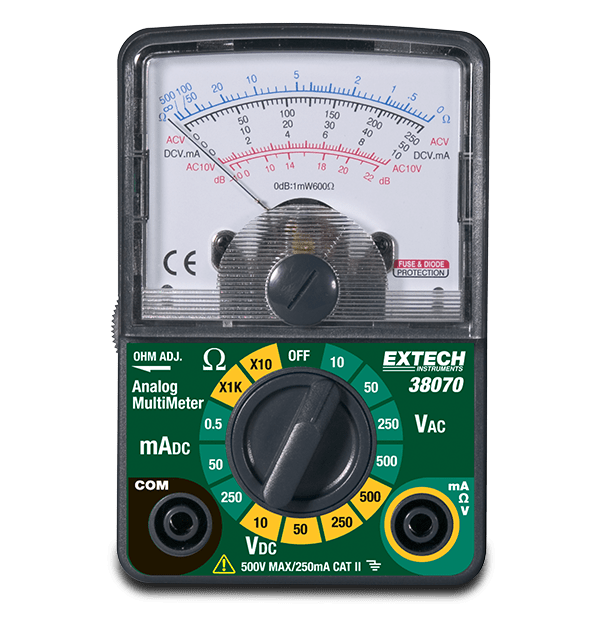

Extech 38070
Compact Analog MultiMeter
Extech’s 38070 Compact Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size and detachable leads. This compact and affordable multimeter is equipped with measurement capabilities that are ideal for the hobbyist, handyman, electronics tinkerer, or DIYer. Use this meter to perform basic troubleshooting on anything connected to an outlet. Analog meters like this one are also useful for illustrating adjustments made to a circuit between relative high and low settings. Includes test leads, one AA battery, and a user manual.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 10V, 50V, 250V, 500V |
| AC電圧の基本精度 | ±4% full scale |
| DC電圧 | 10V, 50V, 250V, 500V |
| DC電圧の基本精度 | ±4% full scale |
| DC電流 | 0.5mA, 50mA, 250mA |
| DC電流の基本精度 | ±4% full scale |
| デシベル | -10 to 56dB (0dB, 1mW, 600Ω) |
| 抵抗 | 10kΩ, 1MΩ |
| 追加の詳細 | |
|---|---|
| ディスプレイ | Analog |
| 保証 | 2 years |
| 出力 | 1 × AA (1.5V) battery |
| 安全性カテゴリー | CAT II-500V |
| 寸法 | 3.82 × 3.34 × 1.3" (97 × 65 × 33mm) |
| 認証 | CE, UL |
| 重量 | 3.88oz (110g) |
