Discontinued

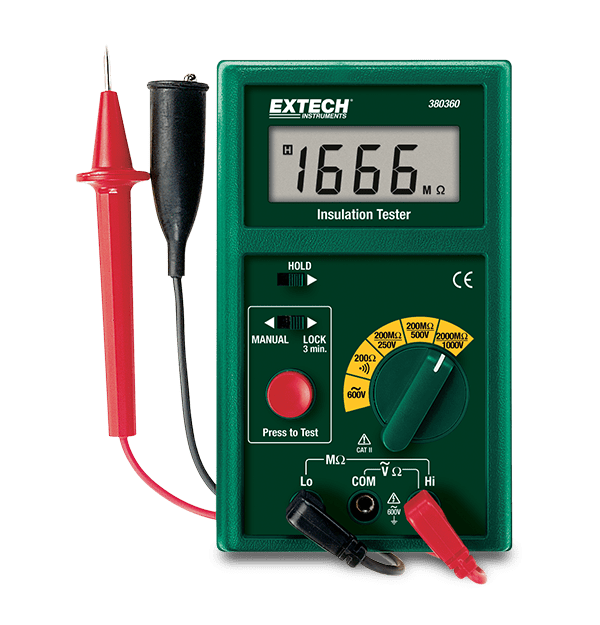

Extech 380360
Digital Megohmmeter
The Extech 380360 is a 1000 V Megohmmeter with an automatic 3 minute test. It has three test voltages of 250 V, 500 V and 1000 V, plus insulation resistance up to 2000 MΩ. Automatic discharge when the safety "Press to Test" button is released. Complete with 6 AA batteries, heavy duty 0.8 m (2.5 ft) test leads, alligator clip, large probe, and case with neck strap.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の基本精度 | 0.8% of reading + 3 digits |
| 低抵抗 | 200Ω |
| 低抵抗の基本精度 | 1% of reading |
| 出力短絡電流 | 1.5 mA 0.3-0.5 mA |
| 導通 | <100Ω |
| 抵抗 | 20/200Ω |
| 断熱抵抗 | 200M, 2000MΩ |
| 絶縁抵抗の基本精度 | <1000MΩ (3% of reading + 5 digits), >1000MΩ (5% of reading + 5 digits) |
| 絶縁試験電圧 | 250V, 500V, 1000V |
| 過負荷保護 | 2200V (< 1 min) |
| 追加の詳細 | |
|---|---|
| ディスプレイ | Segment LCD |
| 保証 | 2 years |
| 出力 | 6 × AA (1.5V) batteries |
| 安全性カテゴリー | CAT II-600V |
| 寸法 | 3.8 × 6.3 × 2.3" (97 × 160 × 58mm) |
| 認証 | CE |
| 重量 | 13oz (369g) |
