HDV7C-A4-60-1

Camera Probe for HDV700-Series

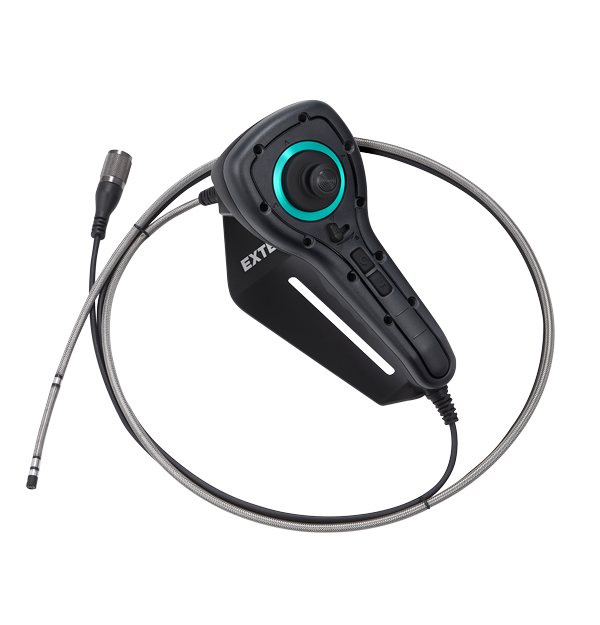

4-Way Articulating 6 mm × 1 m Camera Probe for Extech HDV700-Series High-Performance Videoscope

Specifications

Imaging & Optical
Articulation	4 ways 110°
Depth of Field	10 mm to infinity
Diameter	6.0 mm
Field of View	87.1˚
Field of view (FOV)	87.1˚
Frame Rate	30 fps
Resolution	640 × 480

Environmental & Certifications
Certifications	CE, UKCA
Encapsulation	Probe Tip : IP67 Approved for use in brake and transmission fluid, diesel fuel, unleaded gasoline, engine oil, and CPC hydraulic fluid (46AWS)
Operating Temperature	-10˚C to 60˚C (14˚F to 140˚F)
Warranty	2 years

General
Material	Stainless steel mesh cable
Probe Length	1 m
System Includes	Side-view mirror
