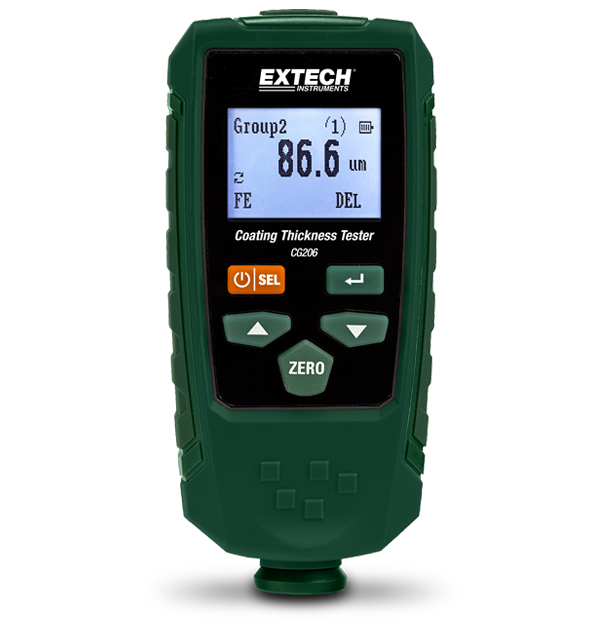

Extech CG206

Coating Thickness Tester

Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces.

Specifications

General
Coating Thickness (Ferrous)	0 to 1350µm (0 to 53mils)
Coating Thickness (Ferrous) Basic Accuracy	±2.5%
Coating Thickness (Ferrous) Max Resolution	0.1µm (0.004mils)
Coating Thickness (Non-Ferrous)	0 to 1350µm (0 to 53mils)
Coating Thickness (Non-Ferrous) Basic Accuracy	±2.5%
Coating Thickness (Non-Ferrous) Max Resolution	0.1µm (0.004mils)
Min Curvature Radius (Ferrous)	1.5mm (59.06mils)
Min Curvature Radius (Non-Ferrous)	3mm (118.1mils)
Min Diameter (Ferrous)	7mm (275.6mils)
Min Diameter (Non-Ferrous)	5mm (196.9mils)
Min Thickness (Ferrous)	0.5mm (19.69mils)
Min Thickness (Non-Ferrous)	0.3mm (11.81mils)
Working Principle (Ferrous)	Magnetic Induction
Working Principle (Non-Ferrous)	Eddy Current
