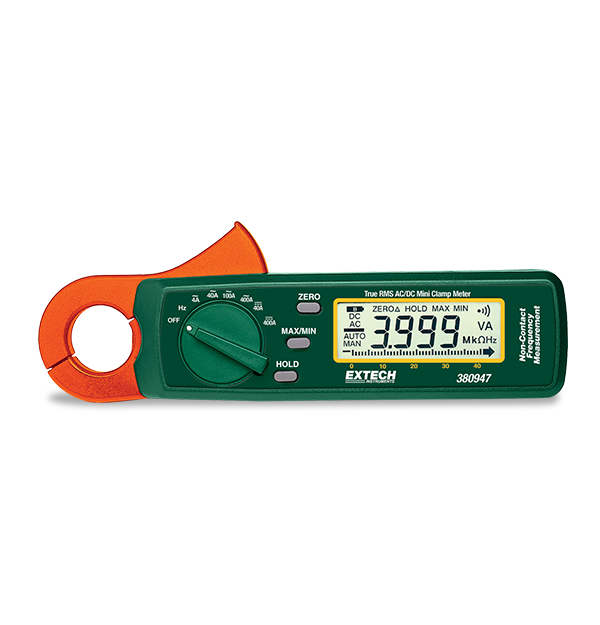

Extech 380947
True RMS AC/DC Mini Clamp Meter
The compact Extech 380947 is a 400 Amp True RMS mini clamp meter. This meter has a small diameter jaw designed to reach in small areas while providing 1mA resolution and very low-current sensitivity. This mini clamp meter is useful for current and frequency related troubleshooting in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. Comes with battery and manual.
Specifications
| General | |
|---|---|
| AC Current | 4A, 40A, 100A, 400A |
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.001A |
| DC Current | 40A, 400A |
| DC Current Basic Accuracy | ±1.0% |
| DC Current Max Resolution | 0.01A |
| Frequency | 10kHz |
| Frequency Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Frequency Max Resolution | 0.01Hz |
| Jaw Size | 0.9" (23mm), conductors up to 4/0 AWG |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 7 × 1.8 × 1.3" (178 × 45 × 32mm) |
| Display | 4000-count segment LCD |
| Safety Category | CAT III-300V |
| Warranty | 2 years |
| Weight | 8oz (225g) |
Resources & Support
User Manual
Extech 380947 User Manual
User Manual
Extech 380947 User Manual GB
Datasheet
Extech 380941 380942 380947 Datasheet
Certification
Extech 380947 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
