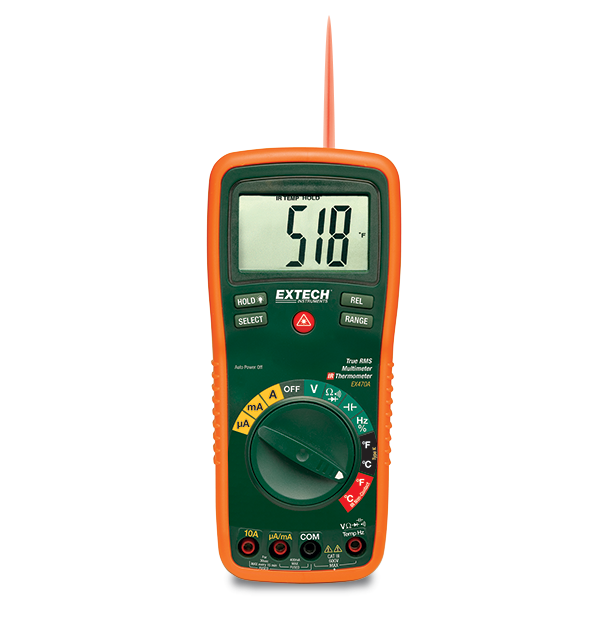

Extech EX470A
12 Function True RMS Professional MultiMeter + InfraRed Thermometer
The Extech EX470A True RMS Multimeter and Infrared Thermometer with capacitance, frequency, and duty cycle measurements and 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Its functions include AC and DC Voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). The meter comes complete with test leads, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 600V |
| 交流电流 | 0.1µA to 10A |
| 占空比 | 0.1% to 99.9% |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1382°F (-20 to 750°C) |
| 温度（红外）基本精度 | 58 to 518°F (-50 to 270°C) |
| 电容 | 0.01nF to 100µF |
| 电阻 | 0.1Ω to 40MΩ |
| 直流电压 | 0.1mV to 600V |
| 直流电压基本精度 | ±0.3% |
| 直流电流 | 0.1µA to 10A |
| 真有效值 | Yes |
| 频率 | 0.001Hz to 10MHz |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, UL |
| 重量 | 0.75lbs (342g) |
