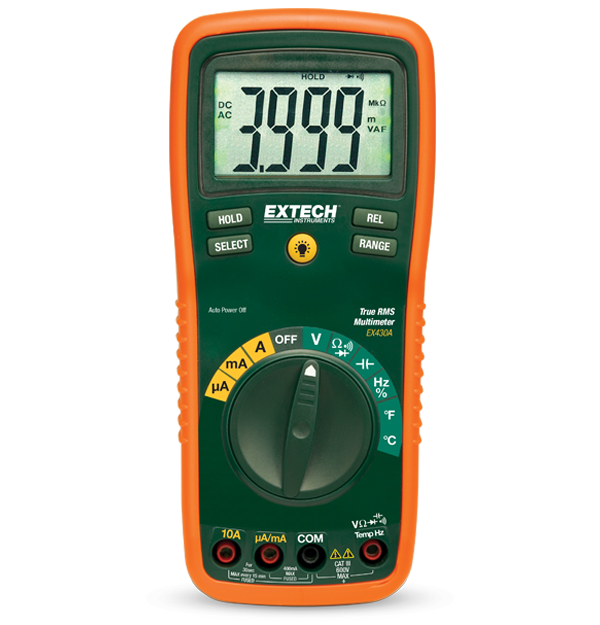

Extech EX430A
11 Function True RMS Professional MultiMeter
The Extech EX430A True RMS autoranging Multimeter (with K Type, capacitance, frequency, and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. This meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 1mV to 600V |
| 交流电压基本精度 | ±0.3% |
| 交流电流 | 0.1mA to 10A |
| 交流电流基本精度 | ±0.5% |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1382°F (-20 to 750°C) |
| 电阻 | 0.1Ω to 20MΩ |
| 直流电压 | 0.1mV to 600V |
| 直流电压基本精度 | ±0.5% |
| 直流电流 | 0.1µA to 10A |
| 直流电流基本精度 | ±0.5% |
| 真有效值 | Yes |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 0.75lbs (342g) |
资源和支持
User Manual
Extech EX430A 用户手册
