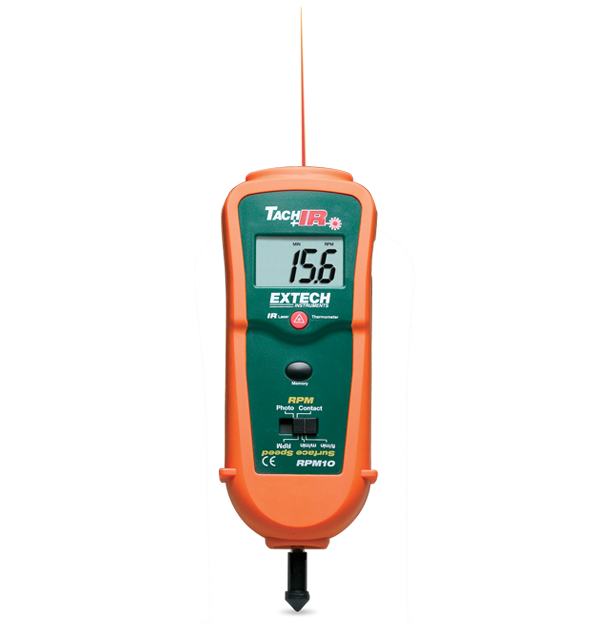

Extech RPM10

Photo/Contact Tachometer with built-in InfraRed Thermometer

The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.

Specifications

General
Rotation Speed (Contact)	0.5 to 20,000rpm
Rotation Speed (Contact) Basic Accuracy	±(0.05% of reading + 1 digit)
Rotation Speed (Contact) Max Resolution	0.1rpm
Rotation Speed (Strobe)	10 to 99,999rpm
Rotation Speed (Strobe) Basic Accuracy	±(0.05% of reading + 1 digit)
Rotation Speed (Strobe) Max Resolution	0.1rpm
Surface Speed (Contact)	0.2 to 6560ft/min, 0.05 to 1999.9m/min
Surface Speed (Contact) Basic Accuracy	±(0.05% of reading + 1 digit)
Temperature (IR) Basic Accuracy	-4 to 600 °F (-20 to 315 °C)

Additional Details
Certifications	RPM10-NIST_S: CE, NIST RPM10_S: CE
Dimensions	8.5 × 2.6 × 1.5" (216 × 66 × 38mm)
Power	4 × AA (1.5V) batteries
Warranty	2 years
Weight	10.6oz (300g)
