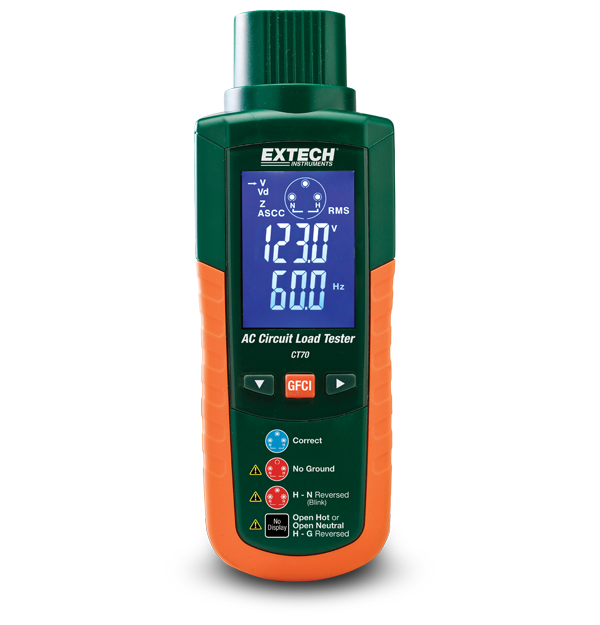

Extech CT70
GFCI and AC Circuit Analyzer
Circuit and wiring issues can introduce shock hazards and compromise performance of machinery and equipment. The CT70 is a GFCI and AC circuit analyzer which covers outlet load handling and outlet tester functions. AC load tester functions cover selectable loads of 12, 15, and 20 Amps; loaded and unloaded AC line voltage measurements; voltage drop/line impedance calculations; and peak line voltage. Outlet tester functions include neutral to ground voltage; hot, neutral, and ground impedance; GFCI trip time/trip current; and open or reversed wiring. The CT70 comes complete with AC test cord (standard North American 3-prong plug).
规格
| 一般参数 | |
|---|---|
| 交流电压 | 90.0 to 240.0V |
| 压降 | 0.1 to 99.9% |
| 峰值线路电压 | 350.0V |
| 频率 | 45.0 to 65.0Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATII - 300V |
| 尺寸 | 8 × 2.8 × 2" (203.2 × 71.1 × 50.8mm) |
| 认证 | CE, ETL |
| 重量 | 11.2oz (317.5g) |
