Extech BR95

Compact Video Borescope

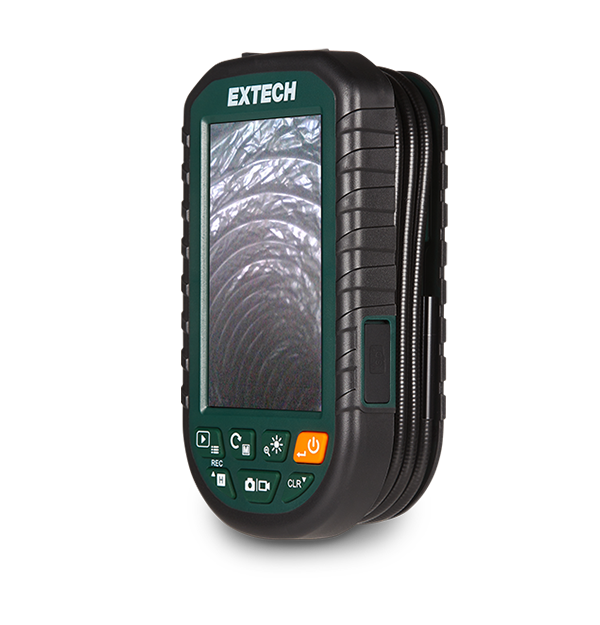

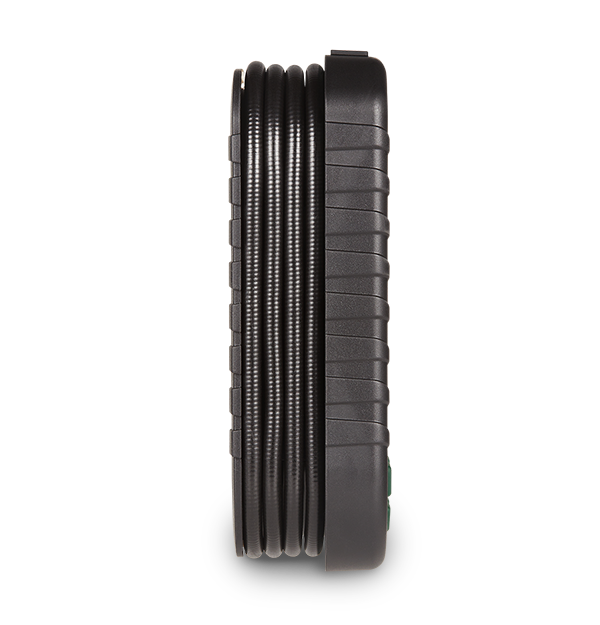

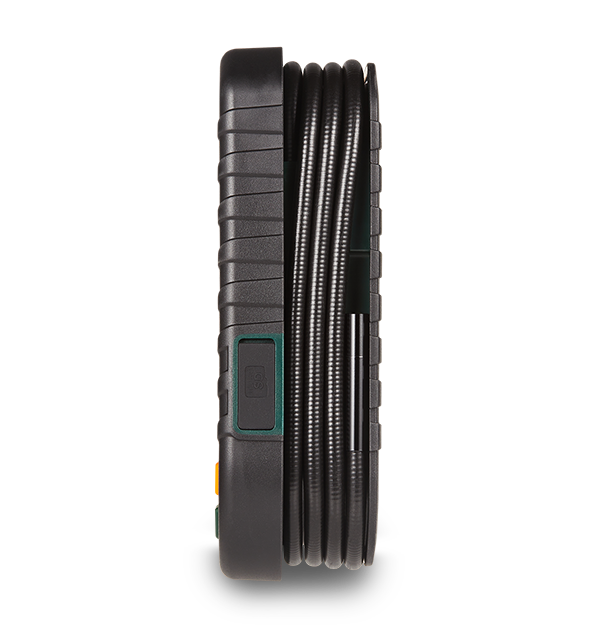

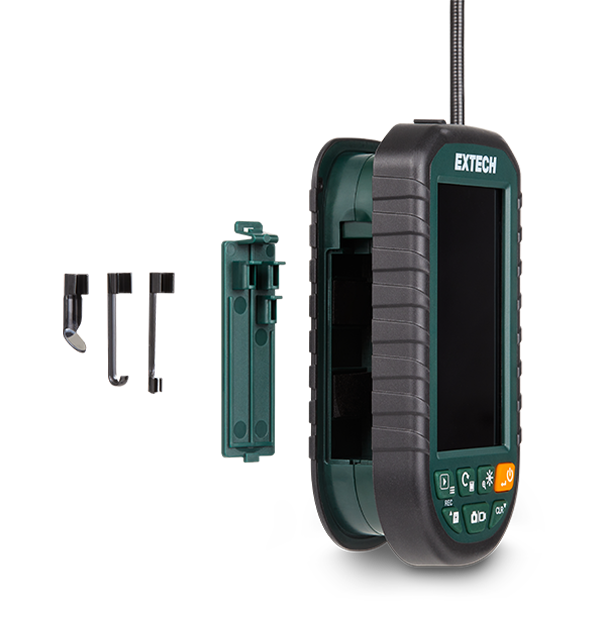

Extech’s palm-sized borescope includes a convenient compartment to coil the camera probe for easy storage. It features a waterproof (IP67) 5.5 mm camera probe with a 1 m flexible goose-neck cable that retains it’s configured shape. The camera delivers sharp 1280 × 720 resolution imaging, while the 3.5 in. IPS display provides clear viewing. Built-in bright LED lamps illuminate the inspection area, and additional features include 3x digital zoom, video recording capability, and microSD card storage for easy file management.

Capture and store clear images and videos with 1280 × 720 resolution

Get into tight spaces with a 5.5 mm camera diameter and 1 m probe

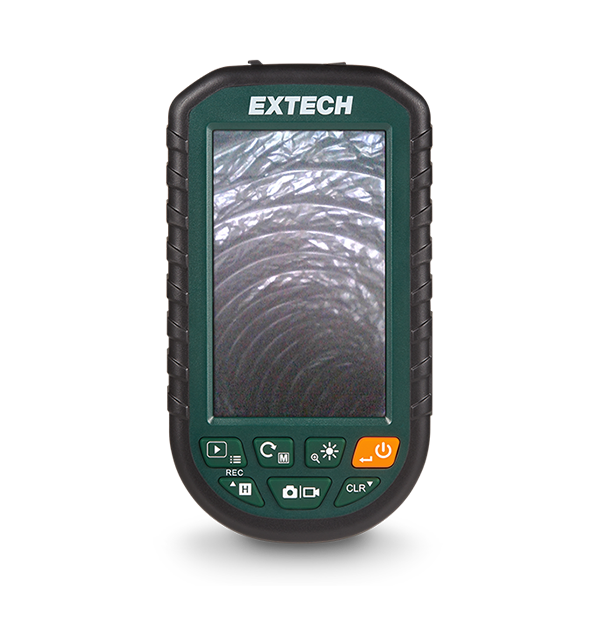

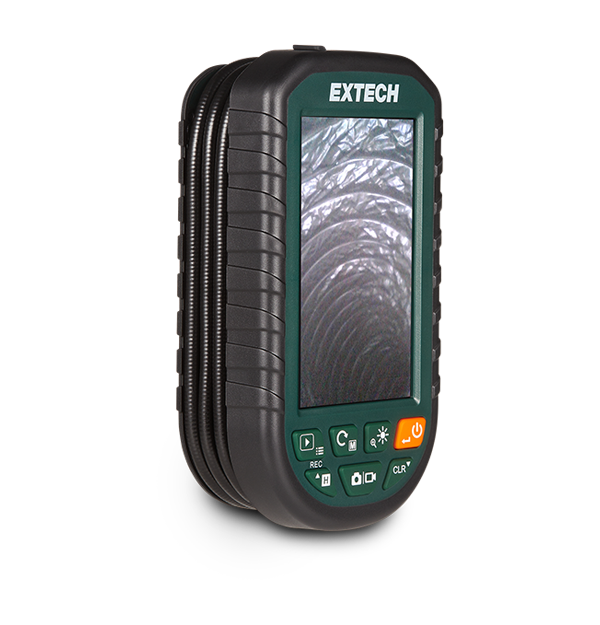

The BR95 features a 3.5 in IPS display, 800 × 480 resolution, 3x digital zoom, and image flip feature

规格

一般参数
内存	16 GB MicroSD card included (supports up to 256 GB)
分辨率	Camera Probe: 1280 × 720
探针灵活性	Semi-Rigid
数字变焦	Digital 1x, 2x, 3x
数据记录间隔时间	Configurable: 5s, 15s, 30s, 1 min
最小弯曲半径	14 mm (0.56 in)
热像仪视图方向	Forward
焦距	35 mm to 60 mm (1.4 in to 2.4 in)
电缆长度	1 m (3.28 ft)
直径	5.5 mm (0.22 in)
视场角	68°

其他详情
IP防护等级	IP67 (Camera Probe only)
保修	2 years
尺寸	129 × 73 × 39 mm (5.1 × 2.9 × 1.5 in)
工作条件	0°C to 45°C (32°F to 113°F), <85% RH
数据记录	Available only when the compatible external USB sensor is connected
显示屏	3.5 in IPS Display (800 × 480)
电源	3.7 V Li-Ion Battery with 3.5 Hour Operating Time Auto Power Off: Configurable: 5 min, 10 min, 20 min, off
认证	CE, UKCA

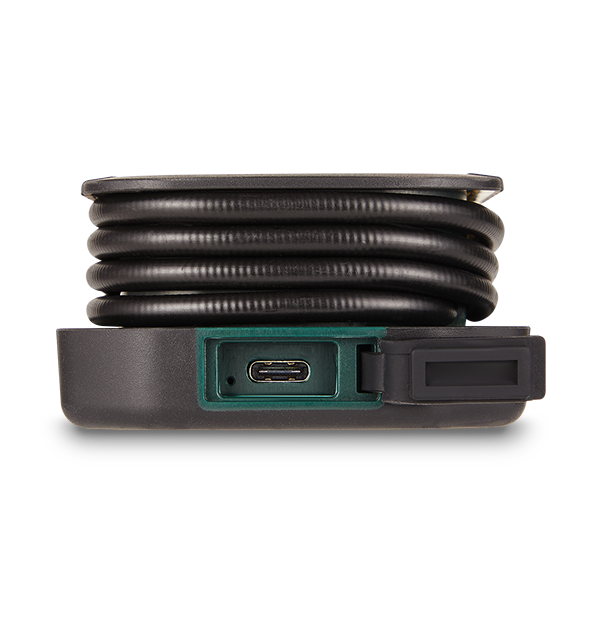

连接器	USB Type-C
重量	262 g (0.58 lb)
