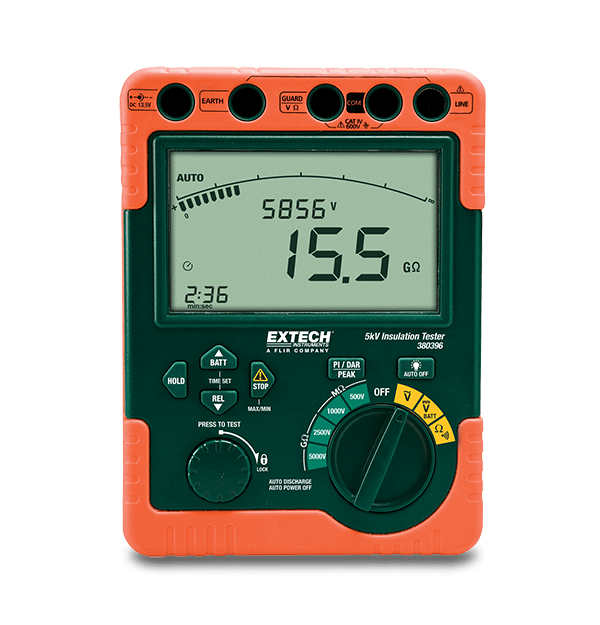

Extech 380396
High Voltage Digital Insulation Tester (220V)
With the Extech 380396, measure insulation resistance to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. It features several measurements including polarization index (PI), dielectric absorption ratio (DAR), and AC/DC voltage to 600 V with a min/max function. It also has peak and relative functions, as well as a 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 220 V AC adaptor, heavy duty carrying case, and user manual.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 0 to 600V |
| 交流电压基本精度 | ±1% of reading |
| 导通性 | 50Ω |
| 电阻 | 0 to 600Ω |
| 直流电压 | 0 to 600V |
| 直流电压基本精度 | ±1% of reading |
| 绝缘测试电压 | 500V, 1000V, 2500V, 5000V |
| 绝缘电阻 | 6MΩ, 60MΩ, 600MΩ, 6GΩ, 60GΩ |
| 绝缘电阻基本精度 | ±2.5% of reading |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CAT IV-600V |
| 尺寸 | 7.8 × 5.8 × 3.4" (198 × 148 × 86mm) |
| 显示屏 | Backlit segment LCD with bargraph |
| 电源 | 8 × C (1.5V) batteries, 220V AC adaptor |
| 认证 | CE |
| 重量 | 3.2lb (1438g) |
