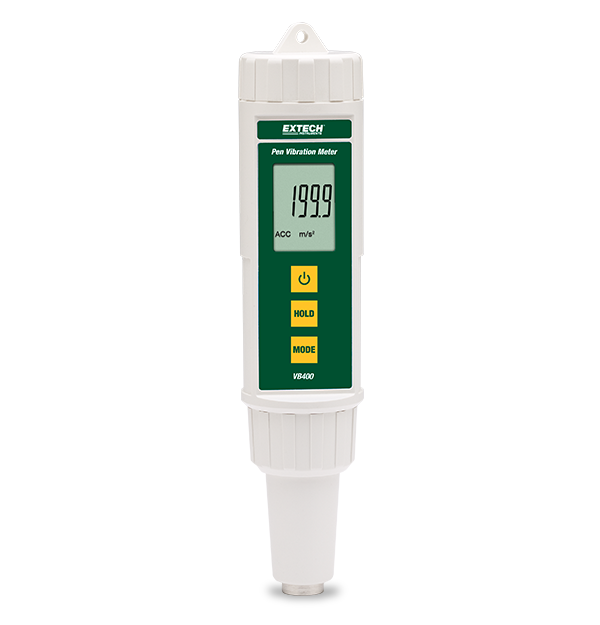

Extech VB400
Pen Vibration Meter
The Extech VB400 Pen Vibration Meter is designed to provide easy and accurate velocity and acceleration measurements on industrial machinery. Its measures RMS Acceleration and Velocity with metric and imperial units of measure. The VB400 has a wide frequency range from 10 Hz to 1 kHz and basic accuracy of ± (5% + 2 digits). Additional features include zero adjustment, data hold, and a low battery indicator. Water and dust resistant to IP65. Complete with test pin tip, magnetic base, 4 AAA batteries, and pouch case.
规格
| 一般参数 | |
|---|---|
| 加速度 | 656ft/s², 200m/s², 20.39g |
| 加速度基本精度 | ±(5% of reading + 2 digits) |
| 加速度最大分辨率 | 1ft/s², 0.1m/s², 0.01g |
| 速度 | 7.87in/s, 2.00cm/s, 200mm/s |
| 速度基本精度 | ±(5% of reading + 2 digits) |
| 速度最大分辨率 | 0.02in/s, 0.01cm/s, 0.1mm/s |
| 采样率 | Approx. 1 second |
| 频带宽度 | 10 Hz to 1 KHz |
| 其他详情 | |
|---|---|
| IP防护等级 | IP65 |
| 保修 | 2 years |
| 尺寸 | 6.9 × 1.6 × 1.3" (175 × 40 × 32 mm); sensing head: 9 mm diameter × 30 mm |
| 显示屏 | 20 mm × 28 mm segment LCD |
| 电源 | 4 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 0.53 lb (240 g) |
