Discontinued

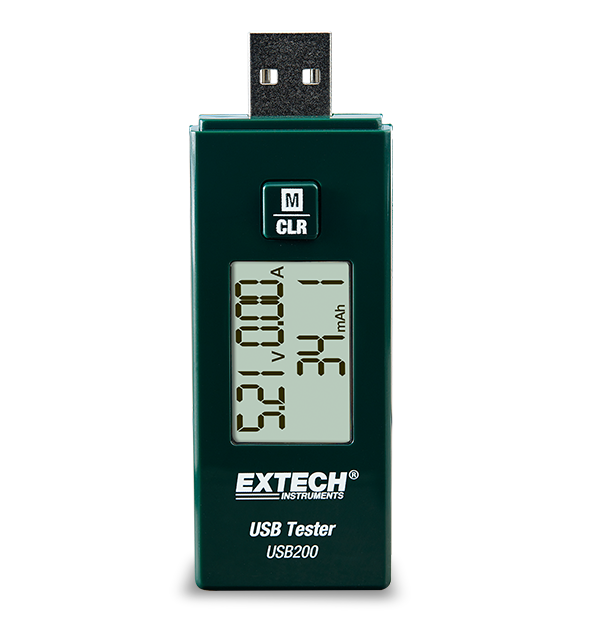

Extech USB200

USB Power Monitor

The Extech’s USB200 monitors voltage, current, and charge capacity (mAh) to determine the quality and stability of chargers, power banks, and cables. It’s designed with a standard USB-A connector to plug into a device to be measured. It also has a USB input to test the quality of charging cables by observing the displayed current. The USB Power Monitor measures the output voltage, current, capacity, and stability to prolong the charging equipment’s life cycle. Memory stores up to 10 readings. Includes protective USB plug cover for storage.

规格

一般参数
内存 10 sets
记忆充电容量 0 to 9999mAh
负载电流 0 to 3ADC
输入电压 3.0 to 9.0VDC
其他详情
尺寸 3.3 × 1.2 × 0.5" (84.1 × 29.1 × 12.3mm) Range
电源 Internal battery
认证 CE
重量 0.8oz (22.7g) Range

资源和支持

User Manual

Extech USB200 用户手册
