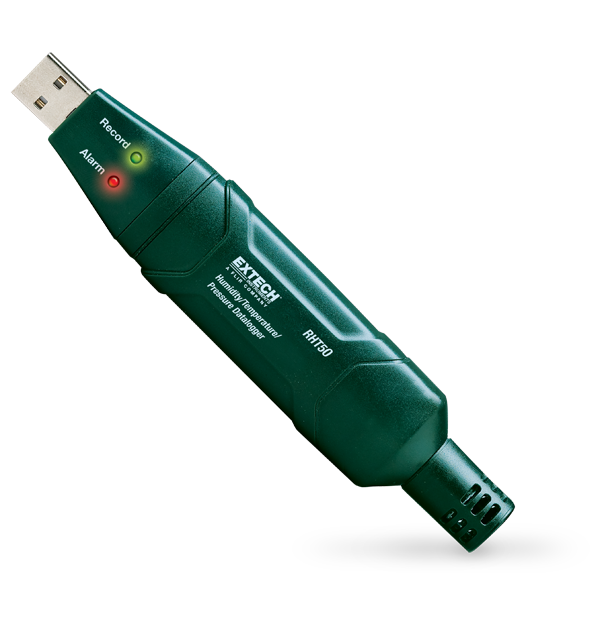

Extech RHT50
Humidity/Temperature/Pressure Datalogger
The Extech RHT50 records relative humidity (0 % RH to 100% RH), temperature (-40°C to 70°C / -40°F to 158°F), and atmospheric pressure (13.7 psi to 15 psi / 950 hPa to 1050 hPa / 95 kPa to 105 kPa / 0.9 bar to 1.0 bar). It logs up to 10,000 readings with user programmable sample rate from 1 minute to 18 hours. Includes USB interface for easy set-up and data download, user-programmable high/low alarm thresholds, and both manual and programmable start modes. Selectable atmospheric pressure units: psi, hPa, kPa, and bar. Status indication via red/yellow LED and green LED. Complete with 3.6V Lithium battery, mounting bracket, and Windows® compatible analysis software.
规格
| 一般参数 | |
|---|---|
| 内存 | 10,000 points |
| 压力 (bar) | 0.9 to 1.0bar |
| 压力 (bar) 最大分辨率 | 0.1bar |
| 压力 (hPa) | 950 to 1050hPa |
| 压力 (hPa) 最大分辨率 | 0.1hPa |
| 压力 (kPa) | 95 to 105kPa |
| 压力 (kPa) 最大分辨率 | 0.1kPa |
| 压力 (psi) | 13.7 to 15.2psi |
| 压力 (psi) 最大分辨率 | 0.1psi |
| 数据记录间隔时间 | 1 minute to 18 hour |
| 温度（空气） | -40 to 158°F (-40 to 70°C) |
| 温度（空气）基本精度 | 0.1°F/°C |
| 温度（空气）最大分辨率 | ±1.8°F/±1.0°C (14 to 104°F/-10 to 40°C); ±3.6°F/±2.0°C (-40 to +14 and 104 to 158°F/-40 to -10 and +40 to 70°C) |
| 相对湿度 | 0 to 100% |
| 相对湿度基本精度 | ±3.5% |
| 相对湿度最大分辨率 | 0.1% |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 5.1 × 1.1 × 0.98" (130 × 30 × 25mm) |
| 电源 | 1 × 1/2 AA (3.6V) battery |
| 认证 | CE |
| 重量 | 1oz (20g) |
