Discontinued

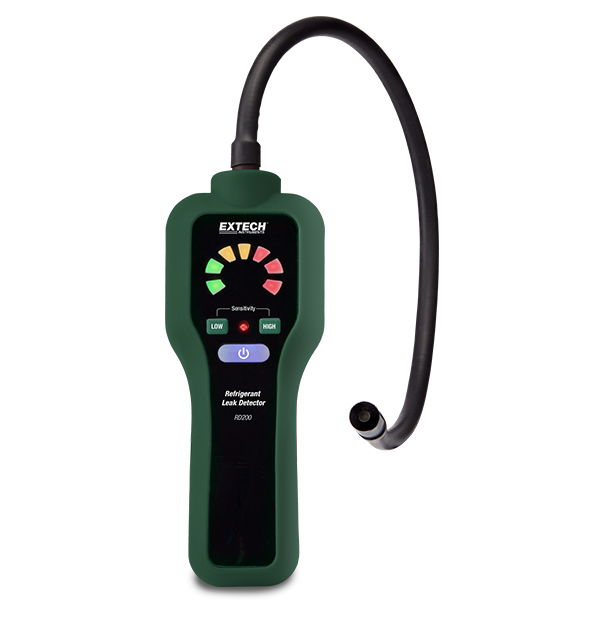

Extech RD200
Refrigerant Leak Detector
The Extech RD200 Refrigerant Leak Detector is easy to use and is ideal for detecting leaks from air-conditioning units and cooling systems that use all standard refrigerants. The multi-colored LED light bar indicates the level of refrigerant detected by the RD200. Features a field replaceable heated diode sensor and low/high sensitivity range selection for accurate leak detection. The 406 mm (16 in) flexible gooseneck provides easy access in difficult to reach locations.
规格
| 一般参数 | |
|---|---|
| 传感器类型 | Heated Diode |
| 探针长度 | 502mm (19.8") |
| 气体检测 | SF6 electrical equipment and gas, HFC, CFC, HCFC refrigerants, HFC (R134 and R123), halogen gas, ethylene, tetrafluoroethylene, trichloroethylene, and most compounds containing halogen. |
| 气体检测灵敏度 | High: 0.2oz/yr (6g/yr); Low: 1.05oz/yr (30g/yr) |
| 预热时间 | 2 minutes (approx.) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 7.3 × 2.8 × 1.4" (185 × 72 × 35mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 10.8 oz (305g) |
