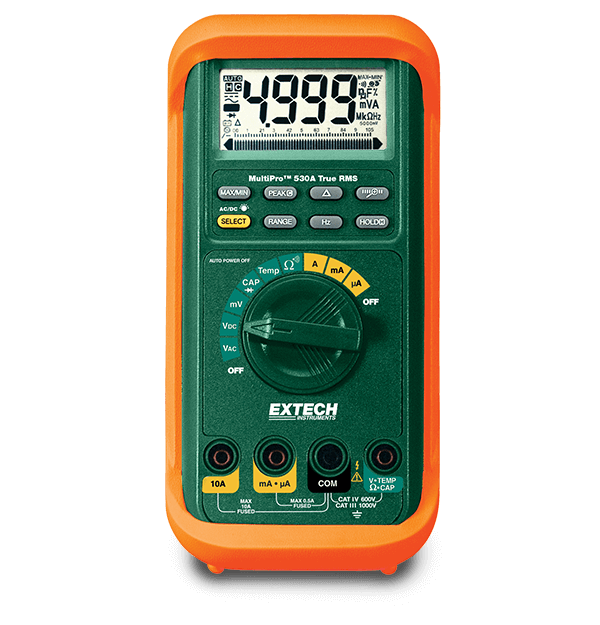

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| 交流电压基本精度 | ±(0.8% of reading + 3 digits) |
| 交流电压最大分辨率 | 0.01mV |
| 交流电流 | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| 交流电流基本精度 | ±(0.8% of reading + 4 digits) |
| 交流电流最大分辨率 | 0.1µA |
| 温度（K 型）最大分辨率 | -58 to 1832 °F (-50 to 1000 °C ) |
| 温度（N 型） | ±(0.3% of reading + 3 digits) |
| 温度（N 型）基本精度 | 1 °F/ °C |
| 电容 | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| 电容最大分辨率 | 0.01nF |
| 电阻 | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| 电阻最大分辨率 | 0.01Ω |
| 直流电压 | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| 直流电压基本精度 | ±(0.08% of reading + 2 digits) |
| 直流电压最大分辨率 | 0.01mV |
| 直流电流 | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| 直流电流基本精度 | ±(0.2% of reading + 4 digits) |
| 直流电流最大分辨率 | 0.1µA |
| 真有效值 | Yes |
| 频率 | 5Hz to 125kHz |
| 频率基本精度 | ±(0.01% of reading + 2 digits) |
| 频率最大分辨率 | 0.001Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIV - 600V |
| 尺寸 | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, UL |
| 重量 | 0.75lb (340g) |
