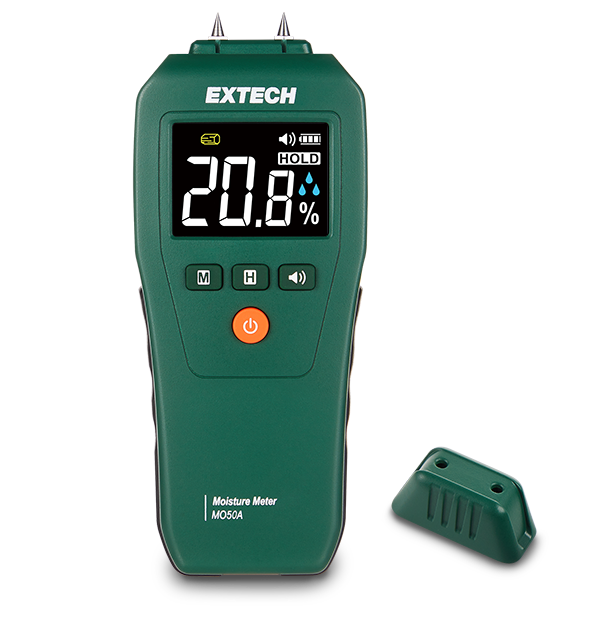

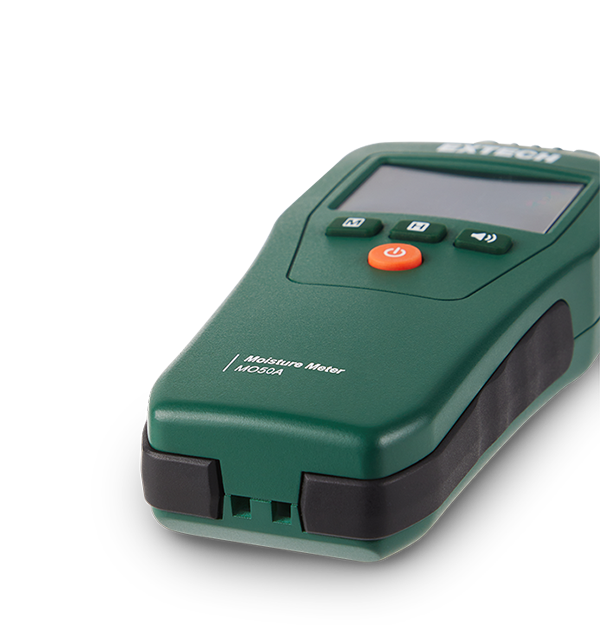

Extech MO50A
Compact Pin Moisture Meter
The MO50A Compact Pin-Type Moisture Meter makes it easy to take quick reference measurements on wood and building materials. It features a high-contrast color LCD with backlight for clear viewing in any lighting condition, along with intuitive display icons and audible alerts that simplify moisture level interpretation. Ideal for building restoration work, the MO50A helps detect moisture in floors, under carpets, behind walls, and in ceilings—making it an essential tool for assessing damage after water leaks.
Bright backlight makes for easy viewing in any lighting condition
Displays moisture levels in wood and building materials such as wall
board, sheet rock, cardboard plaster, concrete, and mortar
Tone rate beeps faster as the moisture level increases
规格
| 一般参数 | |
|---|---|
| WME 水分含量基本精度（有探针） | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| WME 水分含量最大分辨率（有探针） | 0.1% |
| WME 水分含量（有探针） | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |

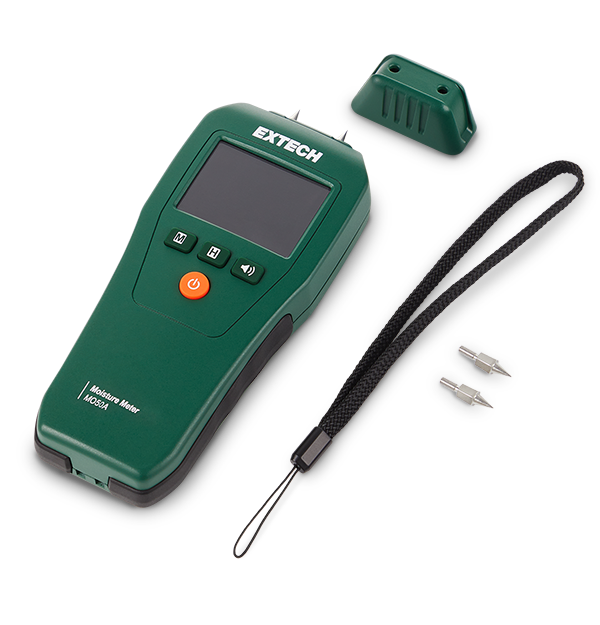

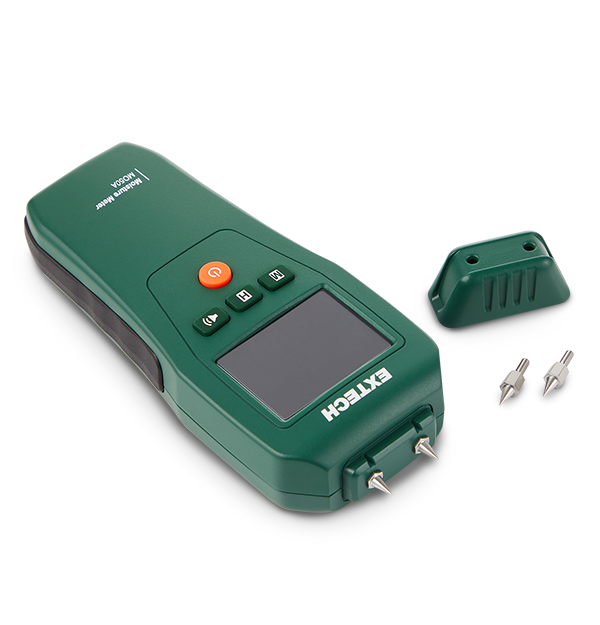

| 传感器类型 | Replaceable threaded contact pins, 8 mm (0.3 in) |
| 存储温度范围 | 0°C to 50°C (32°F to 122°F); < 85% RH |

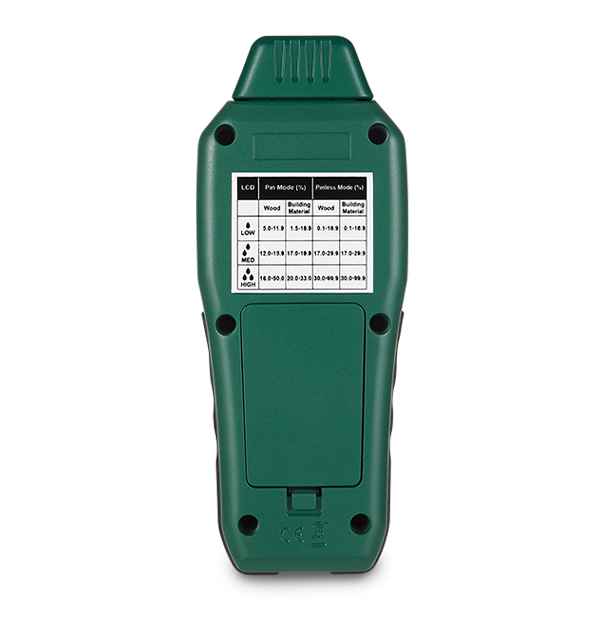

| 测温范围 | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| 测量原理 | Electrical resistance using pins |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| 工作条件 | 5°C to 45°C (41°F to 113°F); < 80% RH |
| 显示屏 | Backlit Color LCD |
| 电池类型 | 3 × 1.5 V, AAA batteries |
| 电源 | After approx. 3 minutes |
| 认证 | CE, UKCA |
| 重量 | 151 g (0.33 lb) excluding batteries |
