Extech MO297
Pinless Moisture Psychrometer with IR Thermometer and Bluetooth METERLiNK™

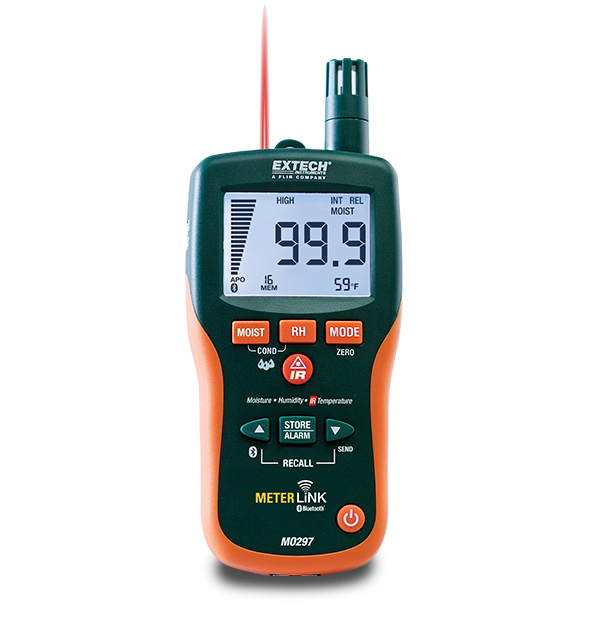

The Extech MO297 is an 8 in 1 Pinless Moisture Psychrometer with a built in infrared (IR) thermometer and Bluetooth MeterLink™ transmitter. It can wirelessly transmits moisture and humidity data to select FLIR thermal imaging IR cameras to incorporate meter readings with thermal images. The pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage. A remote pin-type probe can be used for contact moisture readings in hard to reach or hazardous areas. Complete with the pin probe cable, 9 V battery, and a case.
规格
| 一般参数 | |
|---|---|
| WME 水分含量基本精度（有探针） | ±5% |
| WME 水分含量最大分辨率（有探针） | 0.1 |
| WME 水分含量（有探针） | 0 to 99.9% |
| 传感器类型 | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| 内存 | Manually store/recall 20 data readings |
| 发射率 | 0.95 fixed |
| 无线连接 | Bluetooth |
| 水蒸气 | 0 to 999gpp (0 to 160g/kg) |
| 测量深度 | up to 0.75" (19mm) |
| 温度 (RTD) | 0.1°F/°C |
| 温度（空气） | -20 to 170 °F (-29 to 77 °C) |
| 温度（空气）基本精度 | ±3.6°F (2.0°C) |
| 温度（空气）最大分辨率 | 0.1°F/°C |
| 温度（红外）基本精度 | -4 to 392 °F (-20 to 200 °C) |
| 温度（红外）最大分辨率 | ±3.5% or ±9°F(4.5°C) whichever greater |
| 相对水分含量最大分辨率（无探针） | 0.1 |
| 相对水分含量（无探针） | 0 to 99.9 |
| 相对湿度 | 0 to 100% |
| 相对湿度基本精度 | ±3% |
| 蒸汽压 | 0 to 20.0kPA |
| 蓝牙 METERLiNK™ | Yes |
| 距离系数比 | 8:1 |
| 露点温度 | -22 to 199 °F (-30 to 100 °C) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 7.4oz (210g) |
