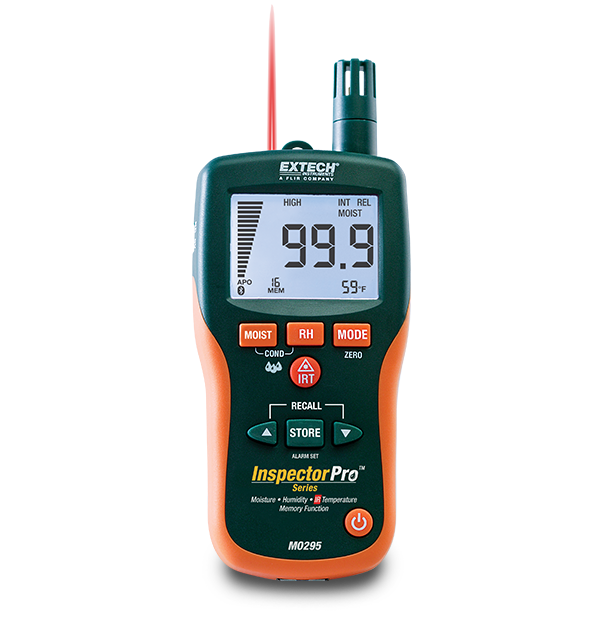

Extech MO295
Pinless Moisture Psychrometer + IR Thermometer
The Extech MO295 is an 8 in 1 meter that combines a pin/pinless Moisture Psychrometer with a built-in Infrared (IR) Thermometer. This pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage, and the remote pin-type probe can be used for contact moisture readings in hard to reach areas. The built in humidity and temperature probe measures relative humidity, air temperature plus grains per pound (GPP), dew point (DP), and vapor pressure. MO295 can store and recall 20 readings in memory. It also features a fast analog bargraph for viewing moisture trends, programmable high/low moisture and humidity alarms, automatic calculation of differential temperature to determine condensation point, min/max function, data hold, and an auto power off function. Comes with a pin moisture probe (MO290-P), one 9 V battery, carrying case, and user manual. Optional specialty moisture probes are available.
规格
| 一般参数 | |
|---|---|
| WME 水分含量基本精度（有探针） | |
| WME 水分含量最大分辨率（有探针） | 0.1 |
| WME 水分含量（有探针） | 0 to 99.9% |
| 传感器类型 | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| 内存 | Manually store/recall 20 data readings |
| 发射率 | 0.95 fixed |
| 水蒸气 | 0 to 999gpp (0 to 160g/kg) |
| 测量深度 | up to 0.75" (19mm) |
| 温度 (RTD) | 0.1 |
| 温度（空气） | -20 to 170 |
| 温度（空气）基本精度 | |
| 温度（空气）最大分辨率 | 0.1 |
| 温度（红外）基本精度 | -4 to 392 |
| 温度（红外）最大分辨率 | |
| 相对水分含量最大分辨率（无探针） | 0.1 |
| 相对水分含量（无探针） | 6 to 99.9 |
| 相对湿度 | 0 to 100% |
| 相对湿度基本精度 | |
| 蒸汽压 | 0 to 20.0kPA |
| 距离系数比 | 8:1 |
| 露点温度 | -22 to 199 |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| 电源 | 1 × 9V battery |
| 认证 | CE, NIST (limited to certain functions) |
| 重量 | 7.4oz (210g) |
