Discontinued

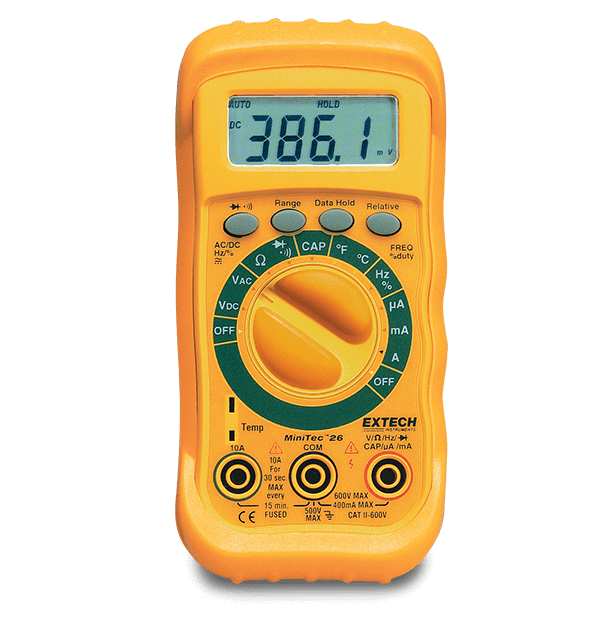

Extech MN26T

MiniTec™ Autoranging Digital MultiMeter

Small on size, big on versatility, the autoranging Extech MN26T MiniTec™ Digital Multimeter is equipped with extensive capabilities, making it a popular choice for technicians, electrical hobbyists/tinkerers, and DIYers alike. You can use the MN26T the way you would use a bigger meter, but you can also keep it with you for quick testing, on the road repairs, or in the field service calls. Use it to measure AC/DC voltage and current, as well as resistance, capacitance, frequency, and duty cycle. Test diodes and continuity, and use functions like data hold and relative mode. Even measure temperature with the supplied Type K bead wire temperature probe. The 4 digit, 4,000 count display is easy to read, and the built in tilt stand is handy for bench work. Comes with test leads, Type K thermocouple probe, two AAA batteries, and carrying case.

规格

一般参数
二极管测试 Yes
交流电压 600V
交流电压基本精度 ±1.5%
交流电压最大分辨率 0.1mV
交流电流 10A
交流电流基本精度 ±1.8%
交流电流最大分辨率 0.1µA
占空比 0.1% to 99.9% (0.1%)
占空比基本精度 ±1.2%
导通性 Yes
温度(K 型)最大分辨率 0 to 1400 °F (1 °), 0 to 760 °C
温度(N 型) ±3.0%
温度(N 型)基本精度 1 °
电容 200ΩF
电容最大分辨率 0.001nF
电阻 40MΩ
电阻最大分辨率 0.1Ω
直流电压 600V
直流电压基本精度 ±1.0%
直流电压最大分辨率 0.1mV
直流电流 10A
直流电流基本精度 ±1.5%
直流电流最大分辨率 0.1µA
频率 10MHz
频率基本精度 ±1.5%
频率最大分辨率 0.001Hz
其他详情
保修 2 years
安全等级 CATII - 600V
尺寸 4.8 × 2.4 × 1.6" (122 × 61 × 40mm)
显示屏 4000-count segment LCD
电源 2 × AAA (1.5V) batteries
认证 CE, ETL
重量 9.17oz (260g)
