Discontinued
Extech MN25
MiniTec™ Digital MultiMeter

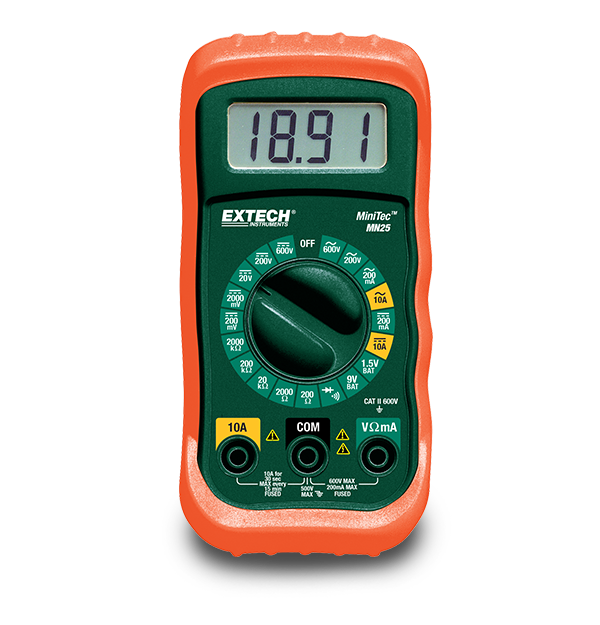

The Extech MN25 MiniTec™ Digital Multimeter has a large, 2,000 count LCD display with a 10 A fuse protection. This meter reads the AC/DC voltage and current, resistance, diode, and continuity. It is capable of running a 1.5 V and 9 V battery test function, and it comes with an overload protection feature with the overload indication signal. This rugged, pocket sized meter is manual ranging and runs eight different functions. The MN25 comes complete with a protective holster, stand, one 9 V battery, and the needed test leads.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 200 V, 600 V |
| 交流电压基本精度 | ±1.5% |
| 交流电压最大分辨率 | 0.1 V |
| 交流电流 | 200 mA, 10 A |
| 交流电流基本精度 | ±1.8% |
| 交流电流最大分辨率 | 1 µA |
| 导通性 | Yes |
| 电池测试 | 9 V, 1.5 V |
| 电阻 | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| 电阻最大分辨率 | 0.1 Ω |
| 直流电压 | 200 mV, 2000 mV, 20 V, 200 V, 600 V |
| 直流电压基本精度 | ±0.5% |
| 直流电压最大分辨率 | 0.1 mV |
| 直流电流 | 200 mA, 10 A |
| 直流电流基本精度 | ±1.2% |
| 直流电流最大分辨率 | 1 µA |
| 其他详情 | |
|---|---|
| 保修 | 1 year |
| 安全等级 | CATII - 600V |
| 尺寸 | 4.8 × 2.4 × 1.6" (122 × 61 × 40 mm) |
| 电源 | 1 × 9V battery |
| 认证 | UL |
| 重量 | 9.17 oz (260 g) |
