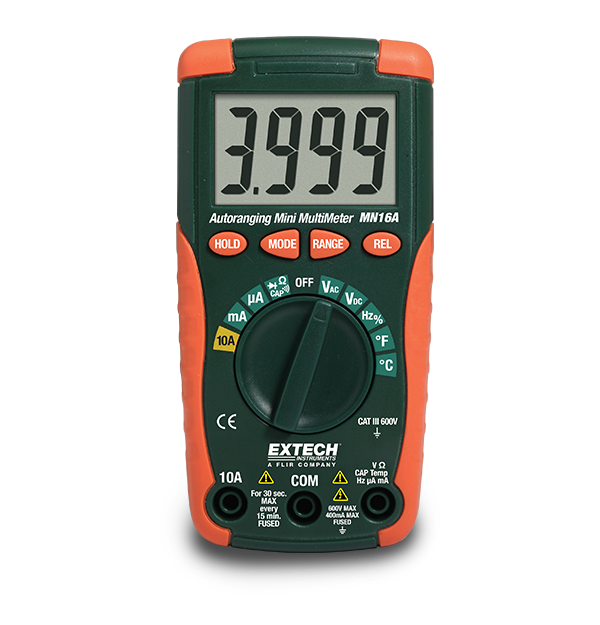

Extech MN16A
Digital Mini MultiMeter
The Extech MN16A is a Digital Mini Multimeter. It measures AC/DC voltage and current, resistance, capacitance, frequency, continuity, diode test, Type K temperature, and duty cycle. In addition, it has an auto power off with disable feature. Measurements are viewed on a large, easy to read LCD display. Product complete with two AAA batteries, general purpose Type K bead wire probe, and test leads.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 600V |
| 交流电压基本精度 | ±1.5% |
| 交流电压最大分辨率 | 0.1mV |
| 交流电流 | 10A |
| 交流电流基本精度 | ±1.8% |
| 交流电流最大分辨率 | 0.1µA |
| 占空比 | 0.1 to 99.9% |
| 占空比基本精度 | ±1.2% |
| 温度（K 型）最大分辨率 | -4 to 1400°F (-20 to 750°C) |
| 温度（N 型） | ±(3% of reading + 9°F/5°C) |
| 温度（N 型）基本精度 | 0.1 ° |
| 电容 | 100µF |
| 电容最大分辨率 | 0.01nF |
| 电阻 | 40MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 600V |
| 直流电压基本精度 | ±1.2% |
| 直流电压最大分辨率 | 1mV |
| 直流电流 | 10A |
| 直流电流基本精度 | ±1.5% |
| 直流电流最大分辨率 | 0.1µA |
| 频率 | 5MHz |
| 频率基本精度 | ±1.2% |
| 频率最大分辨率 | 0.001Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIV - 600V |
| 尺寸 | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, ETL |
| 重量 | 5.4oz (153g) |
资源和支持
User Manual
Extech MN16A 手册
