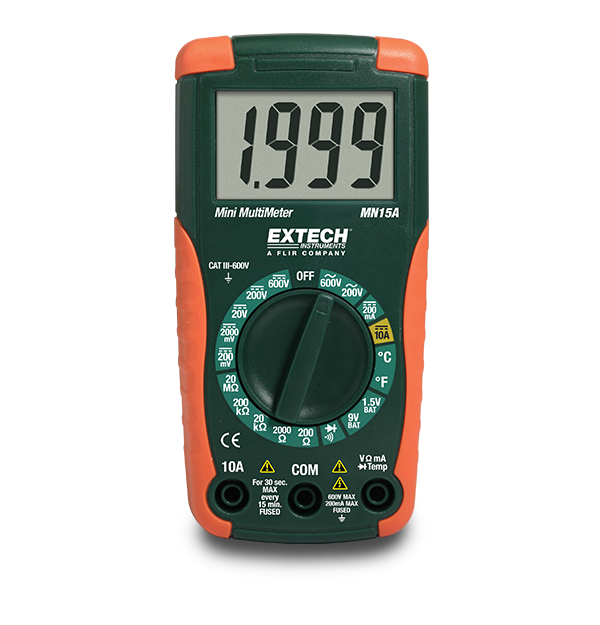

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 600V |
| 交流电压基本精度 | ±1.2% |
| 交流电压最大分辨率 | 0.1V |
| 温度（K 型）最大分辨率 | -4 to 1400°F (-20 to 750°C) |
| 温度（N 型） | ±(3% of reading + 9°F/5°C) |
| 温度（N 型）基本精度 | 0.1 ° |
| 电池测试 | 9V & 1.5V Batteries |
| 电阻 | 20MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 600V |
| 直流电压基本精度 | ±0.5% |
| 直流电压最大分辨率 | 0.1mV |
| 直流电流 | 10A |
| 直流电流基本精度 | ±1.2% |
| 直流电流最大分辨率 | 0.1mA |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIV - 600V |
| 尺寸 | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, ETL |
| 重量 | 5.4oz (153g) |
资源和支持
User Manual
Extech MN15A 手册
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
