Discontinued

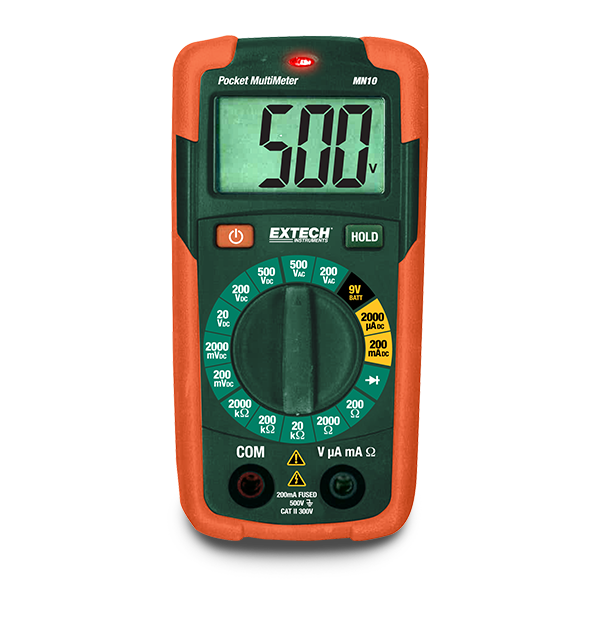

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 500V |
| 交流电压基本精度 | ±1.2% |
| 交流电压最大分辨率 | 0.1V |
| 电池测试 | 9V |
| 电阻 | 2000kΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 500V |
| 直流电压基本精度 | ±0.5% |
| 直流电压最大分辨率 | 0.1mV |
| 直流电流 | 200mA |
| 直流电流基本精度 | ±1.2% |
| 直流电流最大分辨率 | 1µA |
| 非接触式试电笔 (NCV) | 100 to 600VAC |
| 其他详情 | |
|---|---|
| 保修 | 1 year |
| 安全等级 | CATII - 300V |
| 尺寸 | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| 电源 | 1 × A23 (12V) battery |
| 认证 | CE |
| 重量 | 3.6oz (102g) |
