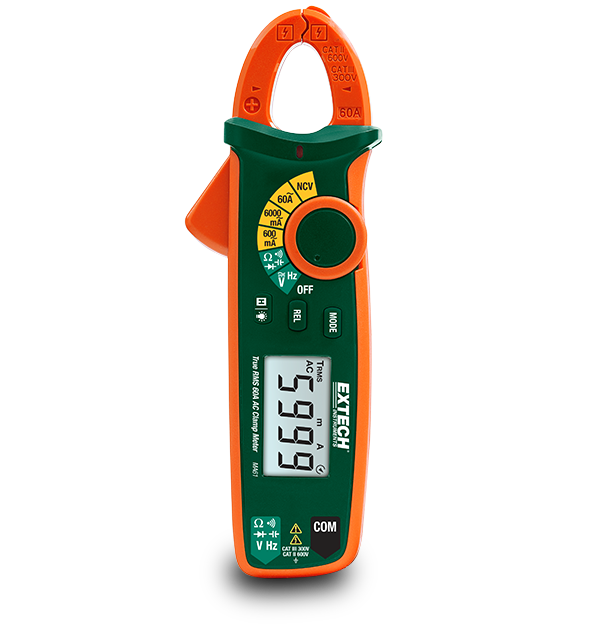

Extech MA61
60A True RMS AC Clamp Meter + NCV
The Extech MA61 is an AC current clamp with an NCV voltage detector and full overload protection. The manual ranging clamp meter comes with three current ranges and AC/DC voltage to 600 V. The 6000 mA range allows for low current measurements that may be used in the automotive industry. Unique VFC (variable frequency control) mode helps troubleshoot and diagnose HVAC applications that are variable frequency driven. The MA61 also features resistance, capacitance, frequency, diode, and continuity measurements as well as a data hold low battery indicator and auto power off functions. Complete with test leads, carrying case, and two AAA batteries.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 6V, 60V, 600V |
| 交流电压基本精度 | ±0.8% |
| 交流电压最大分辨率 | 1mV |
| 交流电流 | 600mA, 6000mA, 60A |
| 交流电流基本精度 | ±2.0% |
| 交流电流最大分辨率 | 0.1mA |
| 导通性 | Yes |
| 电容 | 6.2nF, 620µF, 62mF |
| 电容最大分辨率 | 1pF |
| 电阻 | 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 600mV, 6V, 60V, 600V |
| 直流电压基本精度 | ±0.7% |
| 直流电压最大分辨率 | 0.1mV |
| 真有效值 | Yes |
| 钳口尺寸 | 0.7" (18mm), conductors up to 300MCM |
| 非接触式试电笔 (NCV) | Yes |
| 频率 | 10Hz to 60kHz |
| 频率最大分辨率 | 0.001Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATII - 600V, CATIII - 300V |
| 尺寸 | 6.9 × 2.4 × 1.3" (175 × 60 × 33.5mm) |
| 显示屏 | 6000-count segment LCD with backlighting |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, ETL |
| 重量 | 6oz (170g) |
