Discontinued

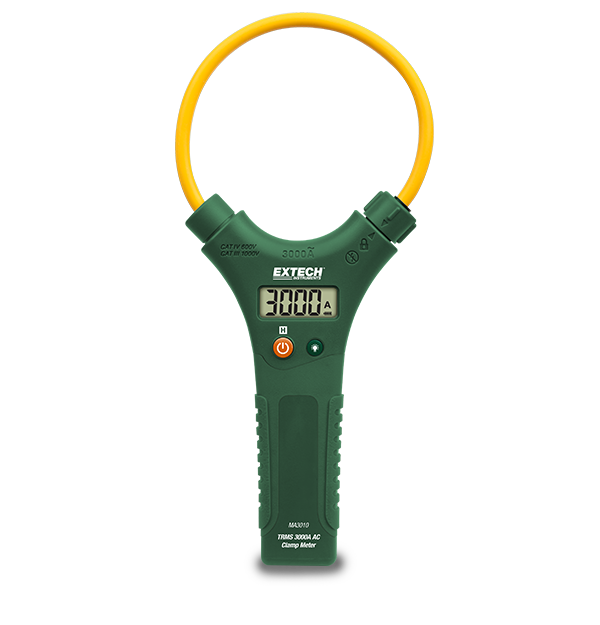

Extech MA3010
3000A True RMS AC Flex Clamp Meter
The Extech MA3010 is a 3000A True RMS AC Flex Clamp Meter. The MA3010 features a 25.4 cm (10 in) flexible clamp with LCD monitor. The True RMS measurements are for accurate readings of noisy, distorted, or non-sinusoidal waveforms. Complete with two AAA batteries. UL listed and CAT IV 600V safety rating.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A |
| 交流电流基本精度 | ±(3% of reading + 5 digits) |
| 交流电流最大分辨率 | 0.01A |
| 真有效值 | Yes |
| 钳口尺寸 | 10" (25.4cm) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 11 × 4.7 × 1" (280 × 120 × 25mm) |
| 显示屏 | 3000-count segment LCD with backlighting |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, UL |
| 重量 | 6oz (170g) |
资源和支持
User Manual
Extech MA3010 MA3018 手册
