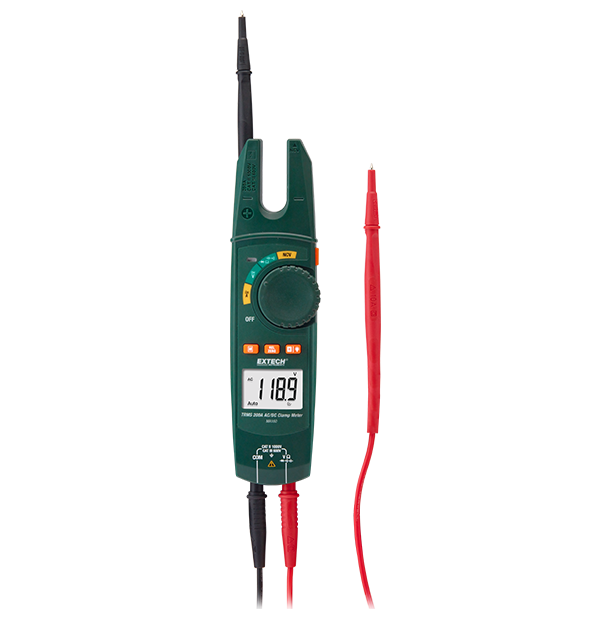

Extech MA160
True RMS 200A AC/DC Open Jaw Clamp Meter
The Extech MA160 is an open jaw True RMS 200 A AC/DC Clamp Meter. Its open jaw design provides quick current measurements in tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted, or non-sinusoidal waveforms. The convenient built in non contact voltage (NCV) detector allows quick detection of live voltages while the LED backlight and flashlight help take measurements in dimly lit environments. The MA160 also features AC voltage to 750 V, DC voltage to 1000 V, resistance, capacitance, continuity, and diode test as well as an auto power off and ergonomic housing with built in test lead holders. Complete with test leads, two AA batteries, and pouch.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 750V |
| 交流电压基本精度 | ±(2.5% of reading + 3 digits) |
| 交流电压最大分辨率 | 1mV |
| 交流电流 | 200A |
| 交流电流基本精度 | ±(2.5% of reading + 5 digits) |
| 交流电流最大分辨率 | 0.1A |
| 导通性 | Yes |
| 电容 | 60mF |
| 电容最大分辨率 | 0.01nF |
| 电阻 | 60MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 1000V |
| 直流电压基本精度 | ±(0.8% of reading + 3 digits) |
| 直流电压最大分辨率 | 1mV |
| 直流电流 | 200A |
| 直流电流基本精度 | ±(2.5% of reading + 5 digits) |
| 直流电流最大分辨率 | 0.1A |
| 真有效值 | Yes |
| 钳口尺寸 | 0.57" (14.5mm) |
| 非接触式试电笔 (NCV) | 100 to 750V |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 8.3 × 2.1 × 1.4" (210 × 53 × 35mm) |
| 电源 | 2 × AA (1.5V) batteries |
| 认证 | CE, ETL |
| 重量 | 5.8oz (164g) |
