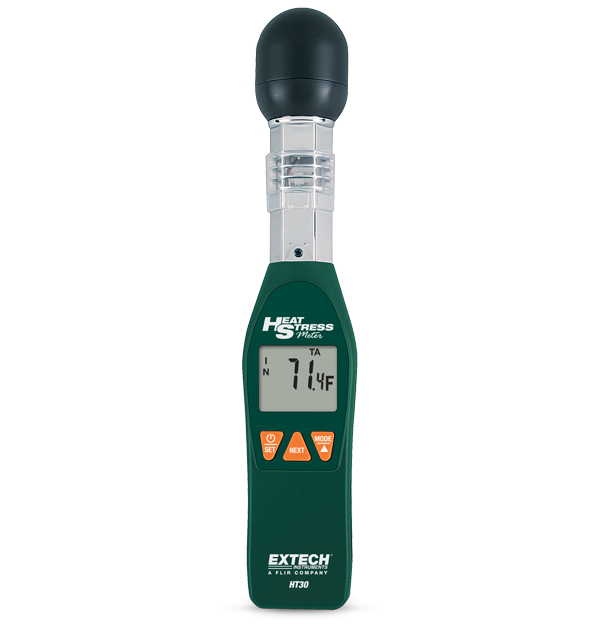

Extech HT30
Heat Stress WBGT Meter
The HT30 Wet Bulb Globe Temperature (WBGT) meter allows you to measure Heat Stress Index, or how hot it feels when humidity is combined with temperature, air movement, and radiant heat. The meter can also take individual temperature, humidity, and radiant heat measurements as well as monitor the effects of direct solar radiation on an exposed surface using the Black Globe temperature sensor. An in/out function displays the WGBT value with or without direct sun exposure. Additional features include Auto Power Off with override and a built-in RS-232 interface. Complete with 2 AAA batteries.
规格
| 一般参数 | |
|---|---|
| 温度（空气） | 32 to 122 °F (0 to 50 °C) |
| 温度（空气）基本精度 | ±1.8 °F/1.0 °C |
| 湿球黑球温度 (WBGT) 基本精度 | ±4 °F/2 °C |
| 湿球黑球温度（WBGT） | 32 to 122 °F (0 to 50 °C) |
| 相对湿度 | 0 to 100% |
| 相对湿度基本精度 | ±3% |
| 黑球温度 (TG) | 32 to 176 °F (0 to 80 °C) |
| 黑球温度 (TG) 基本精度 | ±4 °F/2 °C |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 10 × 1.9 × 1.1" (254 × 48.7 × 29.4mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 4.8oz (136g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407752 Manometer Data Acquisition Software and Connector
User Manual
Extech HT30 手册
