Discontinued

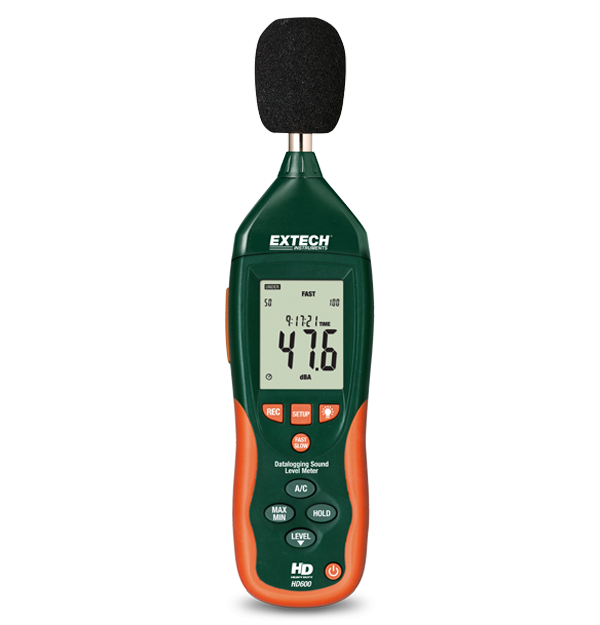

Extech HD600
Datalogging Sound Level Meter
The Extech HD600 Datalogging Sound Level Meter meets ANSI and IEC 61672-1 Type 2 standards. It has three measuring ranges from 30 dB to 130 dB with ± 1.4 dB accuracy. In addition to the LCD digital display, an analog bargraph provides easy viewing of fast changing sound levels. The unit features a rugged double molded housing and a built-in stand. Meter comes with USB cable, Windows compatible software, windscreen, tripod, hard carrying case, 9 V battery, and user manual.
规格
| 一般参数 | |
|---|---|
| PC接口 | USB |
| 内存 | 20,000 records |
| 加权 | A,C |
| 响应时间 | Fast/Slow |
| 声音范围 (dB) | 30 to 130dB |
| 声音范围 (dB) 基本精度 | ±1.4dB |
| 模拟输出 | AC/DC |
| 麦克风 | Condenser, 0.5” (12.7mm) |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 尺寸 | 10 × 2.9 × 2" (255 × 75 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 12.3oz (350g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD600 Software
