Discontinued
Extech HD400
Heavy Duty Light Meter

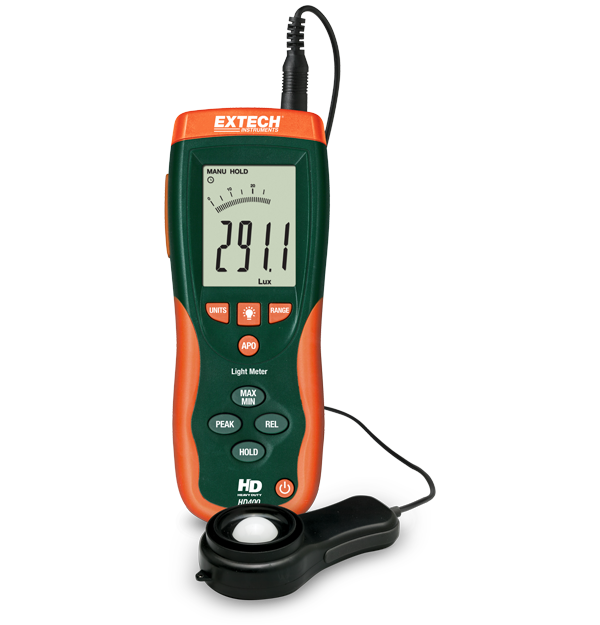

The HD400 Heavy Duty Light Meter measures up to 400 kLux (40,000 Fc) with 0.1 Lux (0.01 Fc) resolution. It features a 5% accuracy, peak mode (10 µs), relative mode, min/max, and data hold functions. The HD400 has a backlit LCD display with a 40 segment bar graph and a rugged double molded housing. Comes complete with light sensor with 1 m (3ft) cable and protective cover, software with USB cable, hard carrying case, and 9 V battery.
规格
| 一般参数 | |
|---|---|
| PC接口 | USB with software included |
| 余弦和色彩校正 | Yes |
| 照度 (Lux) | 400, 4000, 40k, 400kLux |
| 照度 (Lux) 基本精度 | ±5% |
| 照度 (Lux) 最大分辨率 | 0.1Lux |
| 照度（英尺烛光） | 40, 400, 4000, 40kFc |
| 照度（英尺烛光）基本精度 | ±5% |
| 照度（英尺烛光）最大分辨率 | 0.01Fc |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 尺寸 | 6.7 × 3.1 × 1.6" (170 × 80 × 40mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 13.7oz (390g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD400 Software
User Manual
Extech HD400 手册
