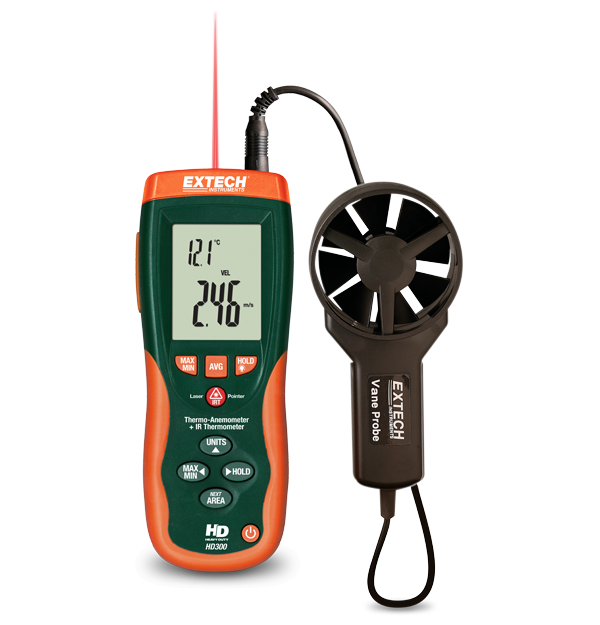

Extech HD300
CFM/CMM Thermo-Anemometer with built-in InfraRed Thermometer
The Extech HD300 is a Thermo-Anemometer with an Infrared Thermometer that measures remote surface temperatures to 500°C (932°F) with a 30:1 distance to target ratio and laser pointer. It can simultaneously display air flow in CFM/CMM or air velocity, plus ambient temperature. This meter has easy to set area dimensions that are stored in the meter's internal memory for the next power on. Additional features include a 9999 count LCD backlit display, 20 point average for airflow, and a heavy duty rugged double molded housing. Comes complete with a vane sensor with 120 cm (3.9 ft) cable, software with cable, carrying case, and 9 V battery.
规格
| 一般参数 | |
|---|---|
| 气量 (CFM) 最大分辨率 | 0.1CFM |
| 温度（空气） | 14 to 140°F (-10 to 60°C) |
| 温度（空气）基本精度 | ±4°F (2°C) |
| 温度（红外）基本精度 | -58 to 932°F (-50 to 500°C) |
| 温度（红外）最大分辨率 | ±2% |
| 风速 (ft/min) | 80 to 5900 ft/min |
| 风速 (ft/min) 基本精度 | ±3% |
| 风速 (km/h) | 1.4 to 108.0 km/h |
| 风速 (km/h) 基本精度 | ±3% |
| 风速 (m/s) | 0.4 to 30.00 m/s |
| 风速 (m/s) 基本精度 | ±3% |
| 风速 (mph) | 0.9 to 67.0 MPH |
| 风速 (mph) 基本精度 | ±3% |
| 风速（节） | 0.8 to 58.0 knots |
| 风速（节）基本精度 | ±3% |
| 风量 (CFM) | 0 to 999900 CFM |
| 风量 (CMM) | 0 to 999900 CMM |
| 风量 (CMM) 最大分辨率 | 0.1CMM |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 尺寸 | 8 × 3 × 1.9" (203 × 75 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 9.8oz (280g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD300 Software
User Manual
Extech HD300 手册
