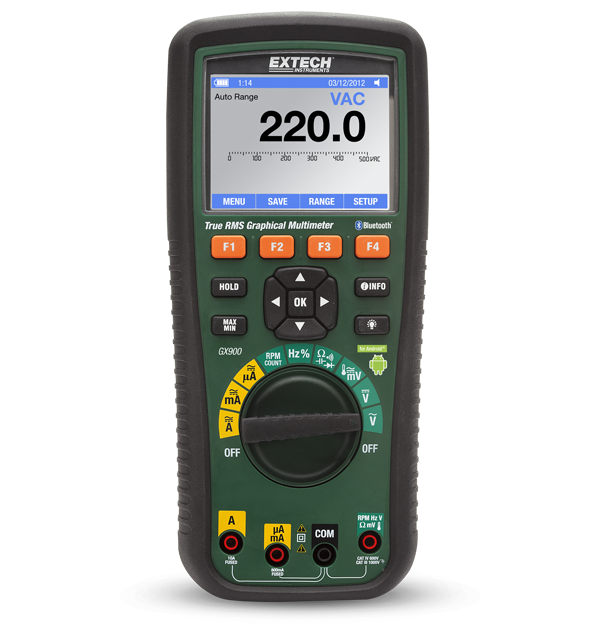

Extech GX900
True RMS Graphical MultiMeter with Bluetooth®
The Extech GX900 is a True RMS Graphical Multimeter with Bluetooth® which transmits key electrical readings to Android mobile devices. The GX900 measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, conductance, RPM, ACV bandwidth, and diode continuity. It features a 50,000 count display with bargraph, a free Android app, data logging (to 2500 readings), Windows compatible software, peak hold, min/max/average modes, relative (%), data hold, automatic data hold, and an auto power off function. Meter comes with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, and six AA batteries.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | 3.2V |
| 交流电压 | 0.001mV to 1000V |
| 交流电流 | 0.01µA to 10A |
| 信号 (dBm/dbV) | -70 to 60dB (nine selectable impedances) |
| 占空比 | 0.1 to 99.9% |
| 导电性 | 50µS |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -58 to 1832 °F (-50 to 1000 °C) |
| 电容 | 0.001nF to 10mF |
| 电阻 | 0.001Ω to 50MΩ |
| 直流电压 | 0.001mV to 1000V |
| 直流电流 | 0.01µA to 10A |
| 真有效值 | Yes |
| 转速（感应拾取） | 12,000RPM |
| 频带宽度 | 100kHz |
| 频率 | Electrical: 40.00Hz to 10kHz; Electronic: 0.001Hz to 10MHz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII -1000V, CATIV - 600V |
| 尺寸 | 9.25 × 4.25 × 2.5" (235 × 108 × 63.5mm) |
| 显示屏 | 50000-count TFT LCD with bargraph |
| 电源 | 6 × AA (1.5V) batteries |
| 认证 | CE, FC |
| 重量 | 1.85lbs (839g) |
