Discontinued

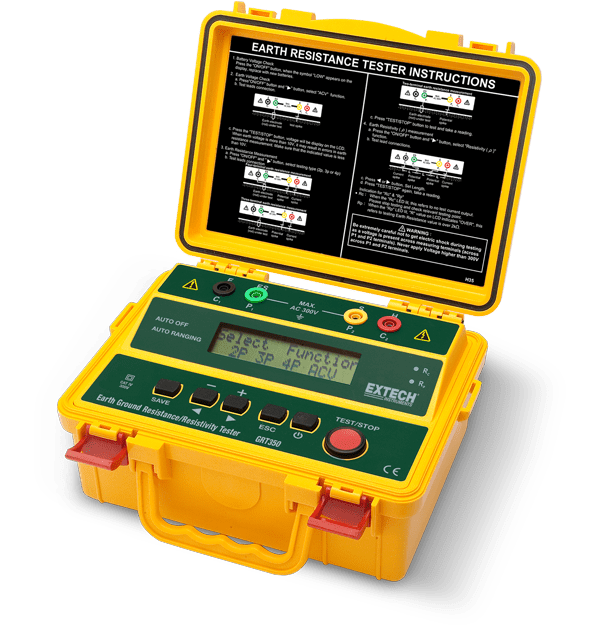

Extech GRT350

4-Wire Earth Ground Resistance/Resistivity Tester

The Extech GRT350 is a 4-Wire Earth Ground Resistance and Resistivity Tester which measures earth ground resistance from 2 Ohm to 2000 Ohm and resistivity from 0.06 ohm-m to 628 ohm-m. The GRT350 supports 4-wire, 3-wire, and 2-wire testing. It has a large dual line LCD, automatic spike check, test hold function, auto ranging, data hold, and auto power off function. This tester can also store and recall up to 200 test results and has over range and low battery indications. Product is complete with test leads with alligator clips, 4 auxiliary earth bars, hard carrying case, user's manual, and eight 1.5 V AA batteries. CE certified with a CAT IV 300 V safety rating.

规格

一般参数
接地电压 0 to 300VAC
接地电压基本精度 ±(2% of reading + 3 digits)
接地电阻 20Ω/200Ω/2000Ω
接地电阻基本精度 ±(2% of reading + 3 digits)
接地电阻最大分辨率 0.01Ω/0.1Ω/1Ω
接地电阻率 0.06 to 6.28 kΩm, 0.62 to 62.8 kΩm, 6.28 to 628 kΩm
测试电流 approx. 2mA
测试频率 820Hz
其他详情
保修 2 years
安全等级 CATIV - 300V
尺寸 9.8 × 7.8 × 4.3" (250 × 190 × 110mm)
电源 8 × AA (1.5V) batteries
认证 CE
重量 3.15lbs (1430g)

资源和支持

User Manual

Extech GRT350 手册
