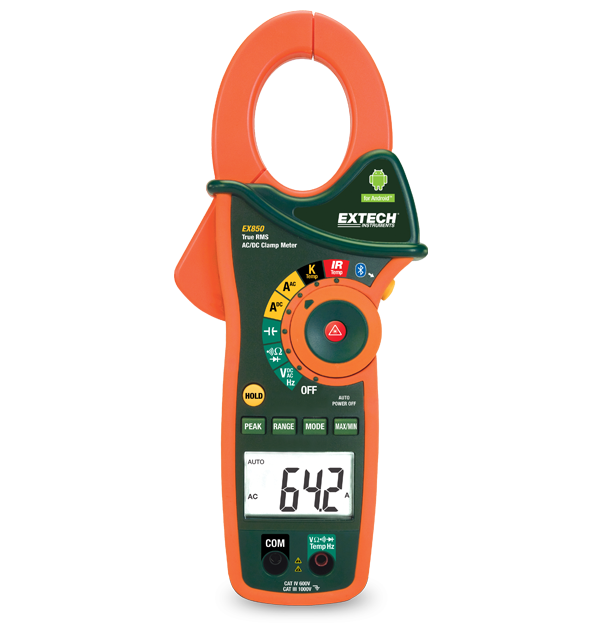

Extech EX850
True RMS 1000A AC/DC Clamp Meter with Bluetooth®
The Extech EX850 is a 1000 A True RMS AC/DC Clamp Meter with Bluetooth®, capable of transmitting key electrical readings to android mobile devices. The EX850 measures AC/DC current and voltage, resistance, capacitance, frequency, IR temperature, and continuity. This clamp meter has a 4.3 cm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM. The EX850 also has a 4000 count backlit LCD display, auto ranging and manual ranging button, as well as data hold, min/max, and auto power off functions. This product has a CAT IV 600 V safety rating and comes with CAT IV test leads, 9 V battery, general purpose Type K probe, user's manual, and pouch case.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 1000V |
| 交流电压基本精度 | ±1.5% |
| 交流电流 | 0.1 to 1000A |
| 交流电流基本精度 | ±2.8% |
| 导通性 | Yes |
| 浪涌电流 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1400°F (-20 to 760°C) |
| 温度（N 型） | ±(3% of reading + 9°F/5°C) |
| 温度（红外）基本精度 | -58 to 518°F (-50 to 270°C) |
| 温度（红外）最大分辨率 | ±2.0% of reading or ±4°F/±2°C |
| 电容 | 0.001nF to 40,000µF |
| 电阻 | 0.1 to 40MΩ |
| 直流电压 | 0.1mV to 1000V |
| 直流电压基本精度 | ±2.8% |
| 直流电流 | 0.1 to 1000A |
| 直流电流基本精度 | ±2.8% |
| 真有效值 | Yes |
| 钳口尺寸 | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| 频率 | 0.001kHz to 4kHz |
| 频率基本精度 | ±1.5% |
| 其他详情 | |
|---|---|
| 保修 | 2 Years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 13.6oz (386g) |
