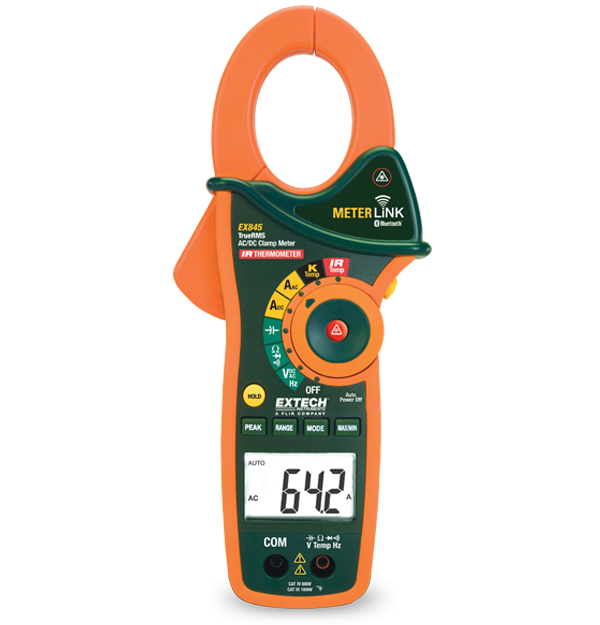

Extech EX845
1000A AC/DC True RMS Clamp/DMM with IR Thermometer and Bluetooth MeterLink™
The Extech EX845 is a CAT IV True RMS 1000 A AC/DC clamp meter/multimeter with a built in IR Thermometer and wireless capability. The MeterLink™ Bluetooth transmitter wirelessly transmits voltage and current readings to selected FLIR thermal imaging IR cameras in order to incorporate meter readings with thermal images. Manual data collection results in unnecessary complexity and risk. MeterLink eliminates this problem by allowing the thermographer to quickly take a current reading on an electrical target and associate those readings with the corresponding targets stored in an infrared image. Complete with CAT IV test leads, 9 V battery, Type K probe, pouch case, and Professional Test Lead Set.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 1000V |
| 交流电压基本精度 | ±1.5% |
| 交流电流 | 0.1 to 1000A |
| 交流电流基本精度 | ±2.8% |
| 导通性 | Yes |
| 浪涌电流 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1400°F (-20 to 760°C) |
| 温度（N 型） | ±(3% of reading + 9°F/5°C) |
| 温度（红外）基本精度 | -58 to 518°F (-50 to 270°C) |
| 温度（红外）最大分辨率 | ±2.0% of reading or ±4°F/±2°C |
| 电容 | 0.001nF to 40,000µF |
| 电阻 | 0.1 to 40MΩ |
| 直流电压 | 0.1mV to 1000V |
| 直流电压基本精度 | ±2.8% |
| 直流电流 | 0.1 to 1000A |
| 直流电流基本精度 | ±2.8% |
| 真有效值 | Yes |
| 钳口尺寸 | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| 频率 | 0.001kHz to 4kHz |
| 频率基本精度 | ±1.5% |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, ETL |
| 重量 | 13.6oz (386g) |
