Discontinued

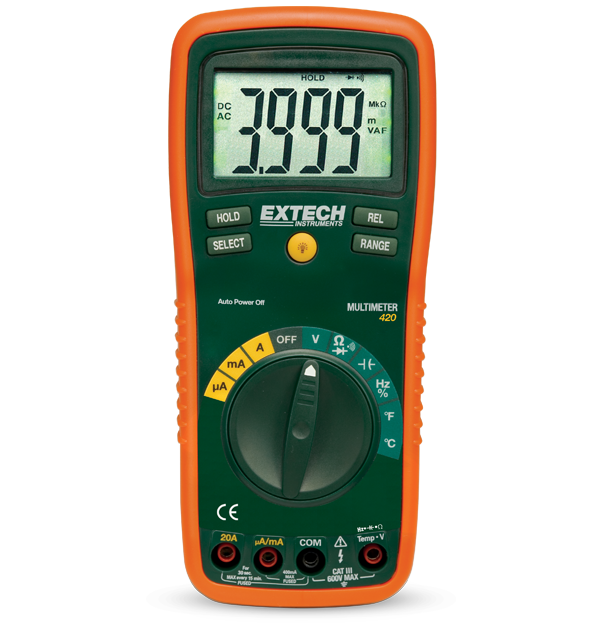

Extech EX420

11 Function Professional MultiMeter

The Extech EX420 is a compact, 11 Function Professional Multimeter. The EX420 measures AC/DC voltage and current, resistance, diode, continuity, and frequency, all with ± 0.3 percent basic accuracy. It can also capture Type K temperature readings. These numerous functions enable professionals to carry one meter into the field instead of several. Featuring a large, backlit LCD screen (4,000 count) with easy to read digits, the EX420 provides high resolution over wide ranges, low current measuring down to 0.1 µA, and input fuse protection with misconnection warnings. Complete with CAT III test leads, multi position tilt stand, velcro hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, 9 V battery, and user manual.

规格

一般参数
二极管测试 Yes
交流电压 0.1mV to 750V
交流电流 0.1µA to 20A
占空比 0.1% to 99.9%
导通性 Yes
温度(K 型)最大分辨率 -4 to 1382°F (-20 to 750°C)
电容 0.01nF to 100ΩF
电阻 0.1Ω to 40MΩ
直流电压 0.1mV to 1000V
直流电压基本精度 ±0.3%
直流电流 0.1µA to 20A
真有效值 Yes
频率 0.001Hz to 10MHz
其他详情
保修 2 years
安全等级 CATIII - 600V, CATIV - 1000V
尺寸 7.4 × 3.2 × 2" (187 × 81 × 50mm)
电源 1 × 9V battery
认证 UL
重量 0.75lbs (342g)
